LIVE — 5-sleeve master boxes + tape · shipping-box round

Print release — 21 Sep

What Rob sends to the factories. Both box files sit on Packola's own dieline for this order (page 1 outside, page 2 inside, 0.25 in bleed, CMYK, 300 dpi, white-ink plate alongside), and both tapes on UPrinting's water-activated tape template (2.75 in wide, 12 in tile, vector CMYK). Every zip is complete on its own: read-me, print spec, QA report, the vendor templates as supplied, and the files.

Everything — one zip 14.7 MB Read-me Print spec QA report Die map — outside Die map — inside

What the real templates changed (all applied, nothing else touched): the tape is 2.75 in, not 3 — the printed dotted guides now sit 1.375 in either side of the seams and the tape art is re-set at 2.75 in on a 12 in seamless tile; Packola's depth band is 3.5 in score-to-score (3.25 in inside + B-flute), so the 13 in and 11 in faces are 3.5 in tall with their text re-centred; the flaps are 5.5625 in and the four panels 13.0625 / 11.125 / 13.125 / 11.0625 in, so the top art and every flap is placed to those exact widths; on a real RSC the end flaps fold in first, so the visible floor is the two end flaps — the floor art (lockup + descriptor / the ten drops) now lives there, the long flaps underneath carry only the lattice or plain black; the end panel next to the glue joint keeps its text 40 mm clear of the tab; the "candy" script and droplet were rebuilt as a clean vector and checked against the sleeve photograph (99.2 % overlap).

Order settings. Packola: Shipping Boxes · 13 × 11 × 3.25 in · Kraft (Brown) with Matte Ink (HD Print) · White Ink Yes · Both Sides · B-Flute. UPrinting: Custom Tape – Water Activated · 2.75 in · full colour · logo repeat 12 in · horizontal · "use my file's background colour".

Nothing open. The read-me carries production notes, not questions: page 1 outside / page 2 inside (labelled in the PDF and slugged in the bleed), glue tab in with the outside of the tab bare, white ink as an underprint under the coloured art outside and as the white elements inside (plates supplied). The candy script and droplet are the brand's lettering rebuilt as a clean vector from the printed sleeve — the brand has no separate vector file, so this is the artwork, and it is in the release. Wording is the client's as approved on the comps; no statutory copy belongs on a B2B case.

Regular · Gen 5 distillate — files

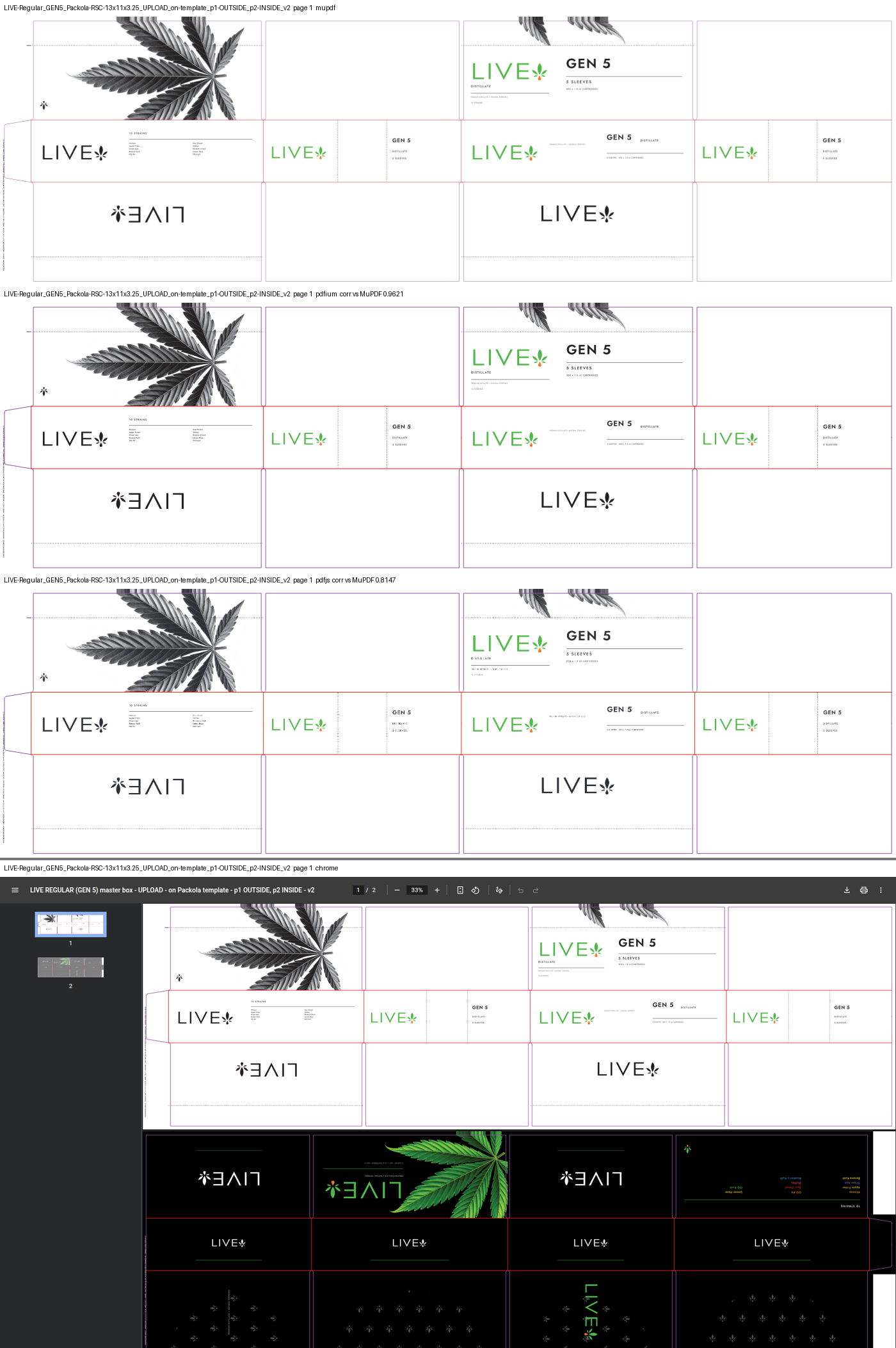

Download the complete release zip 21.5 MB Box PRINT PDF — upload this to Packola (p1 outside, p2 inside) 10.2 MB Tape PRINT PDF — upload this to UPrinting 0.0 MB Box with the vendor die overlaid (check only) 10.2 MB White-ink plate (black = white ink) 0.3 MB

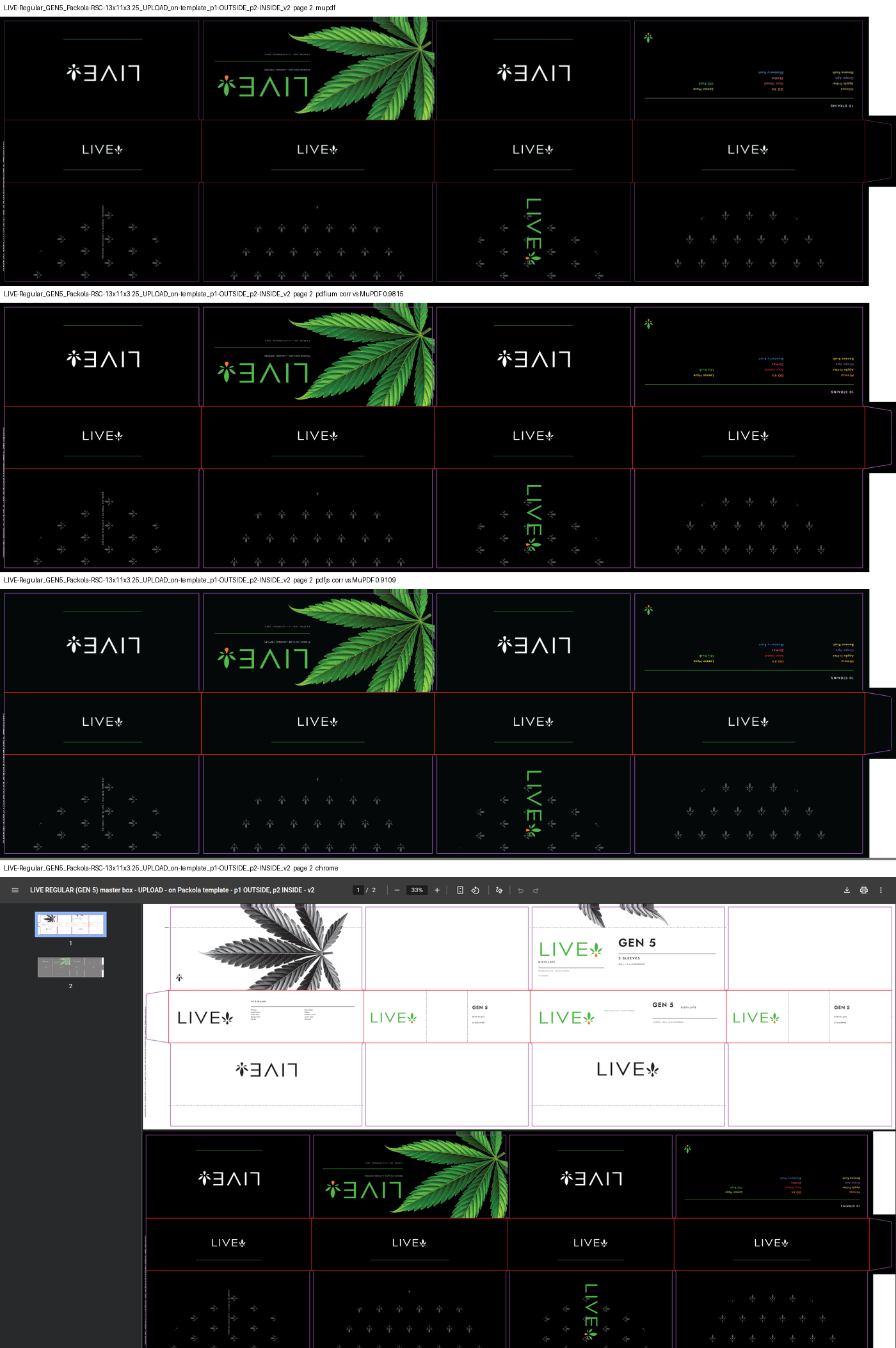

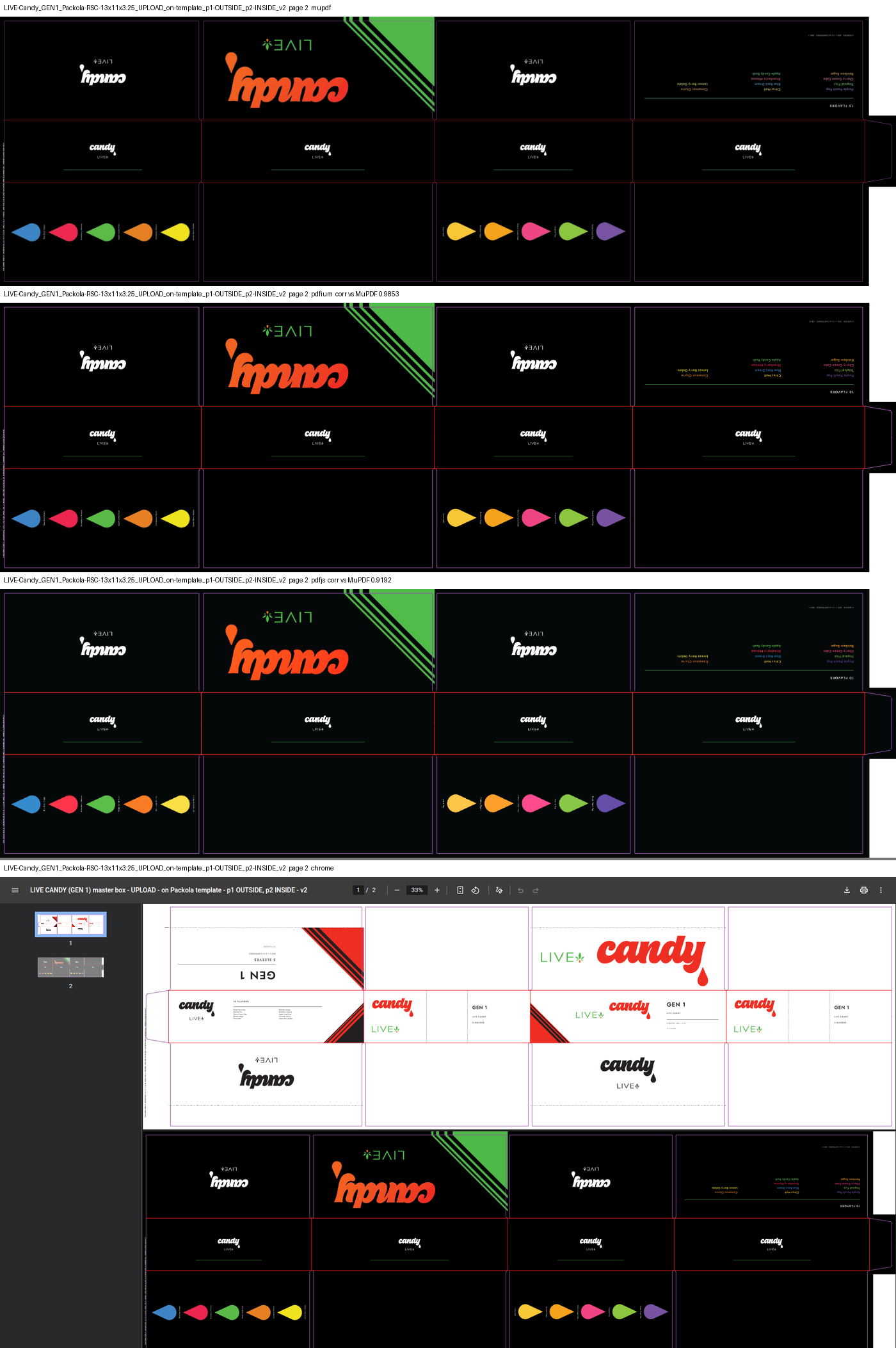

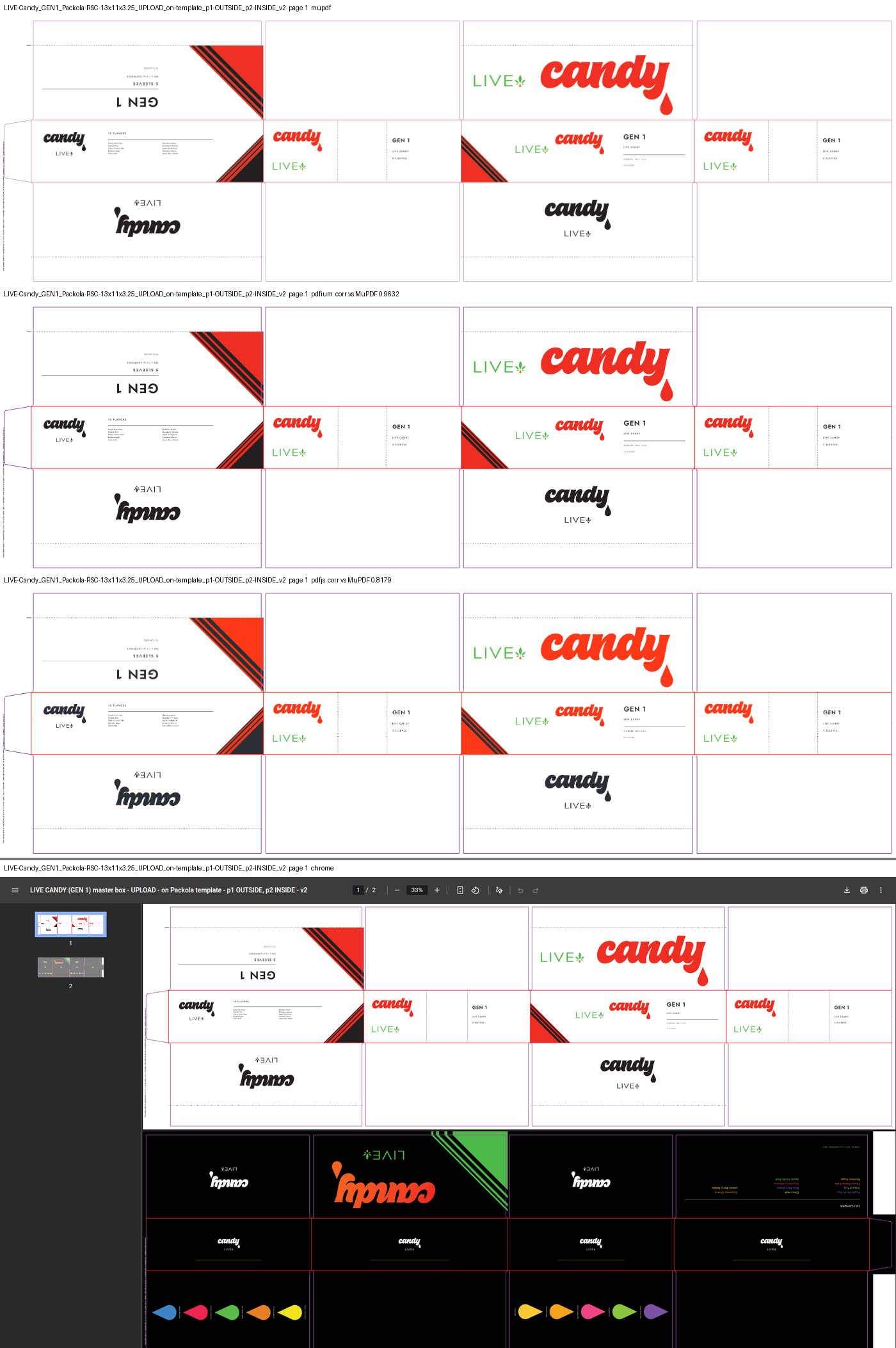

The two flats on Packola's die red = crease · blue = cut · 0.25 in bleed all round

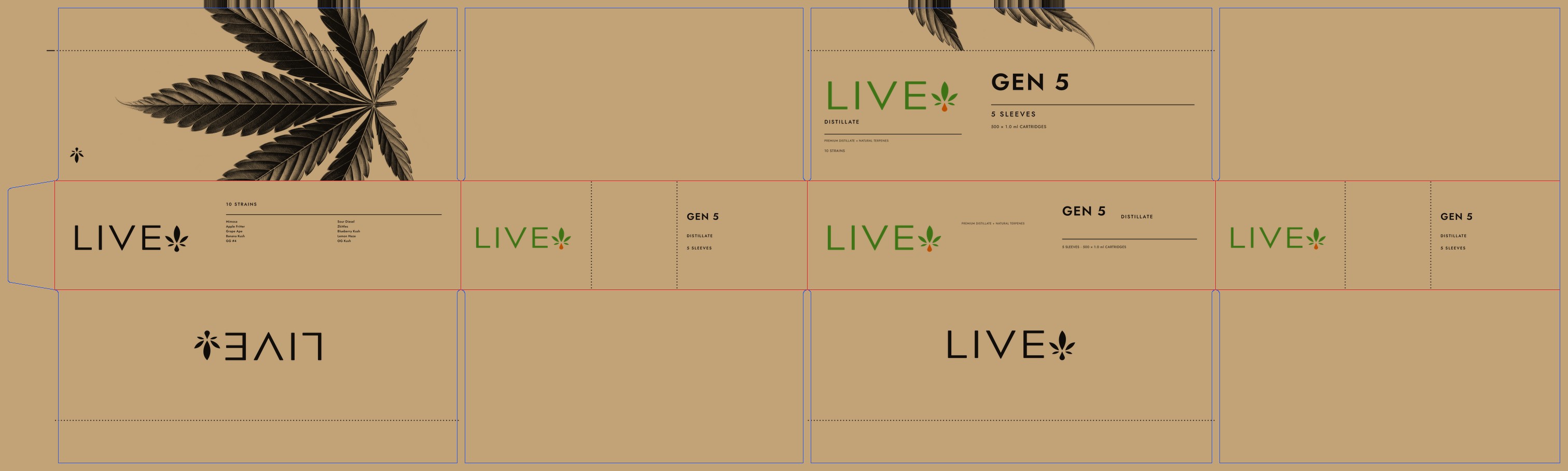

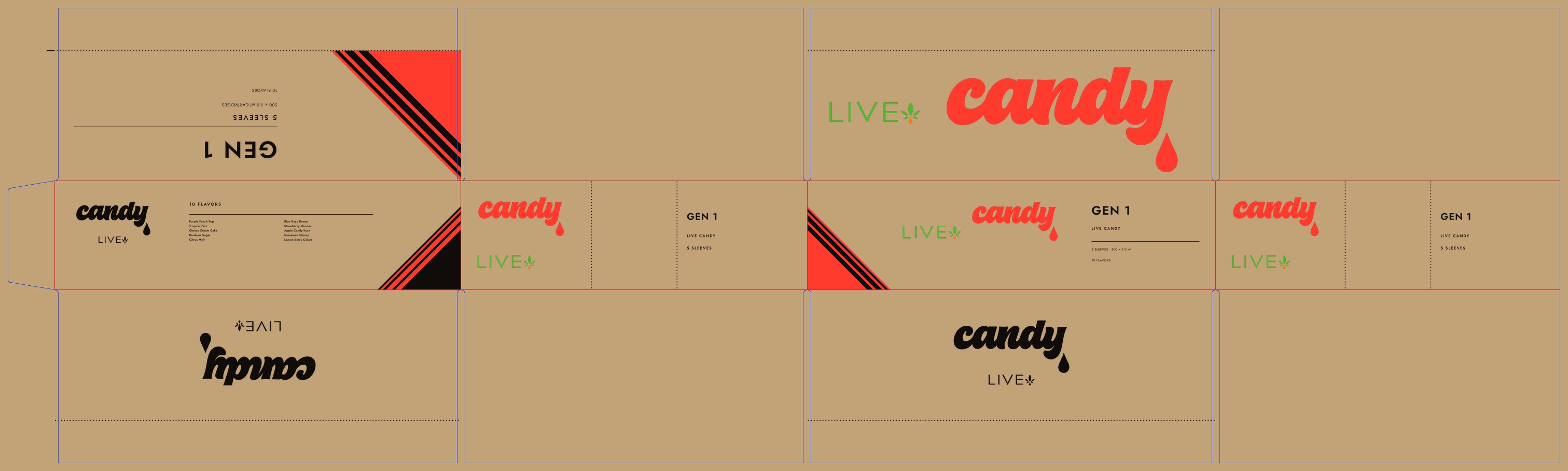

outside flat — Page 1 — OUTSIDE (tab at the left). Kraft shown where nothing prints.

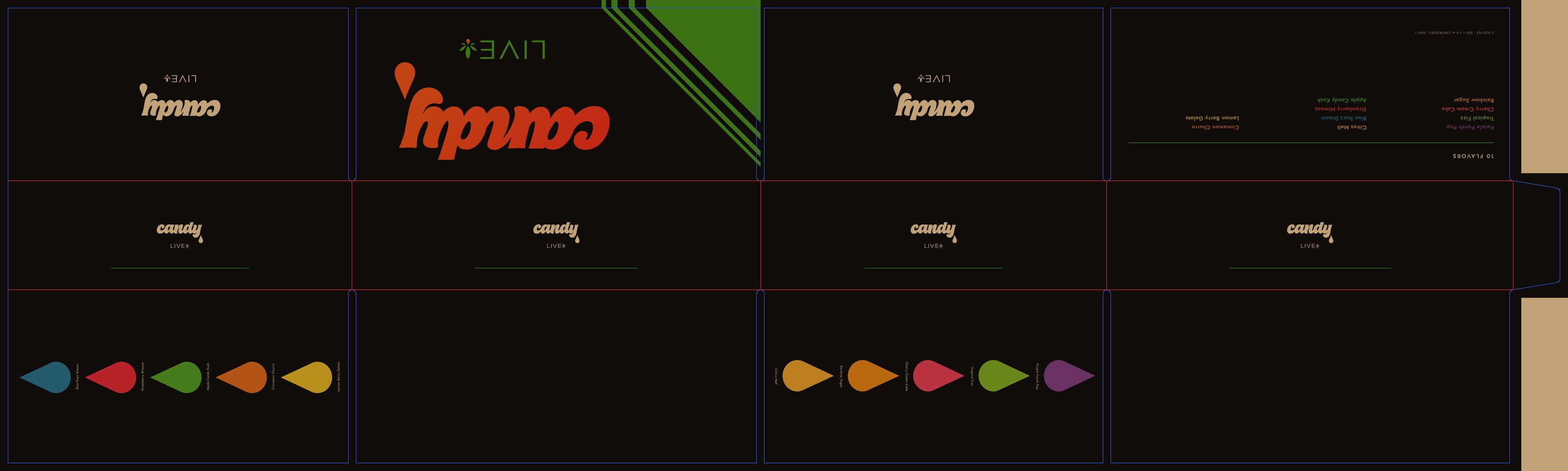

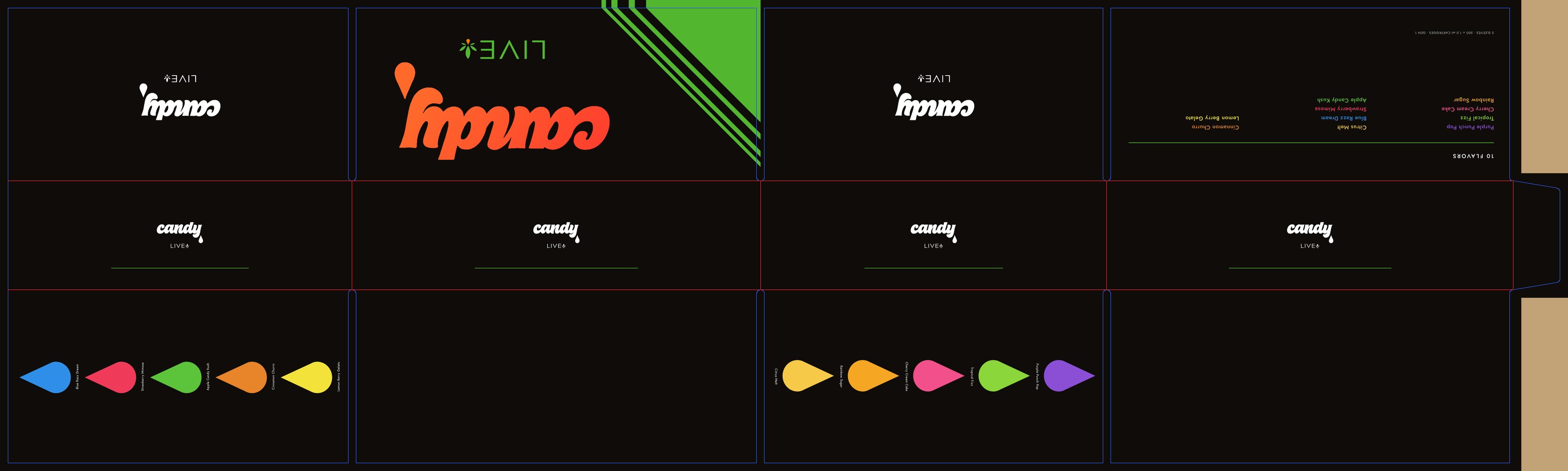

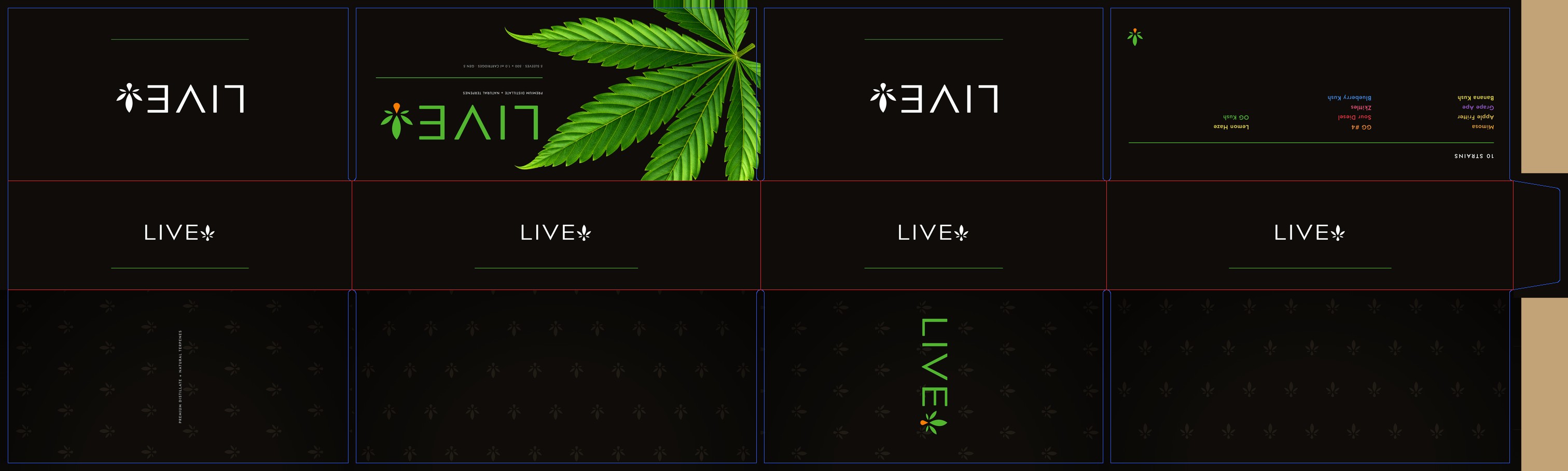

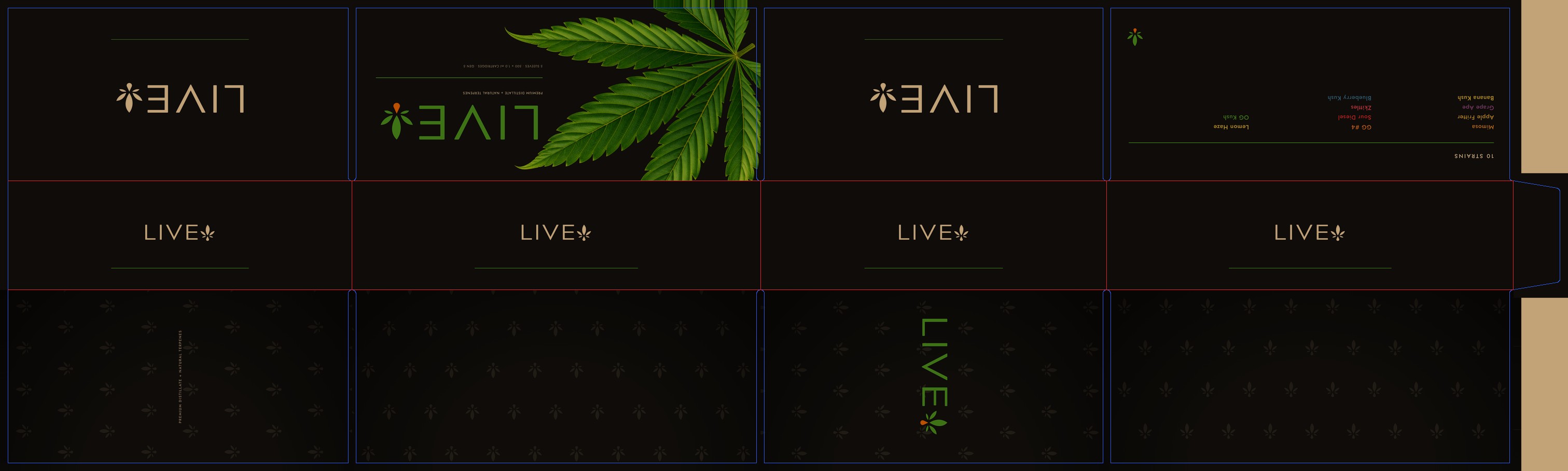

inside flat — Page 2 — INSIDE (the mirror; tab at the right). Flap art is hinge-down on the sheet so it reads upright on the box.

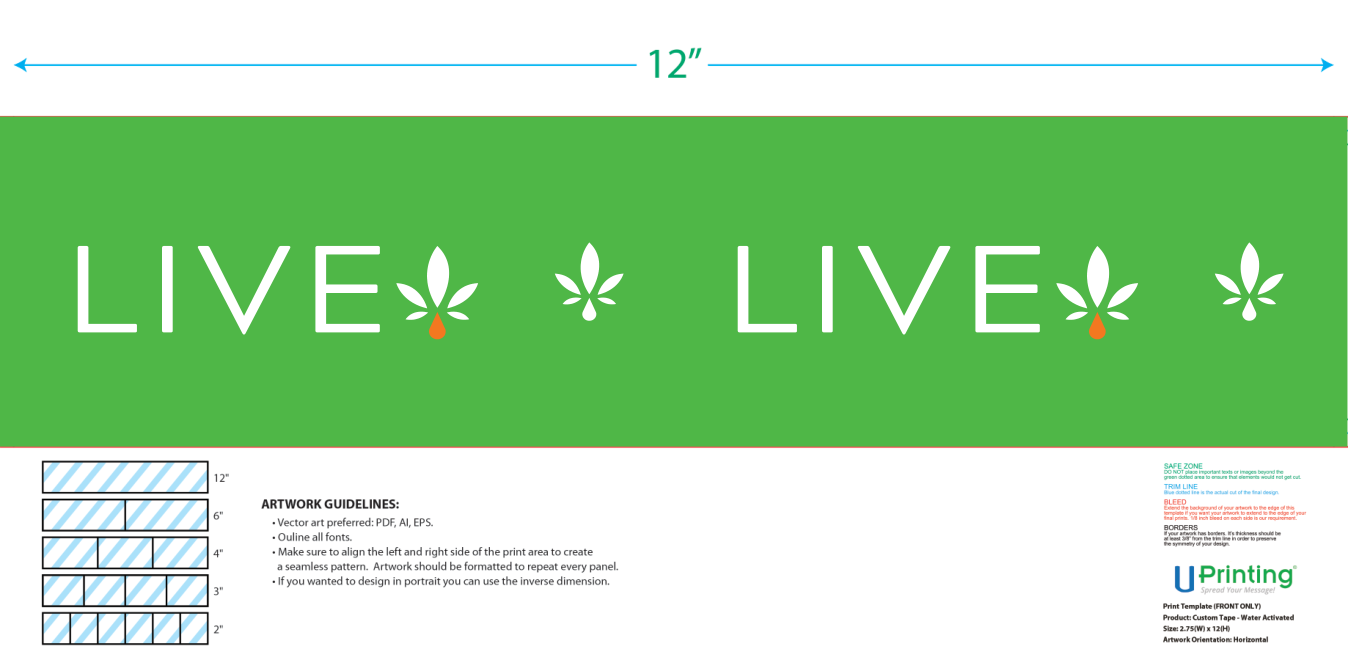

Tape on UPrinting's template 2.75 in × 12 in tile, two 6 in units, 1/8 in bleed

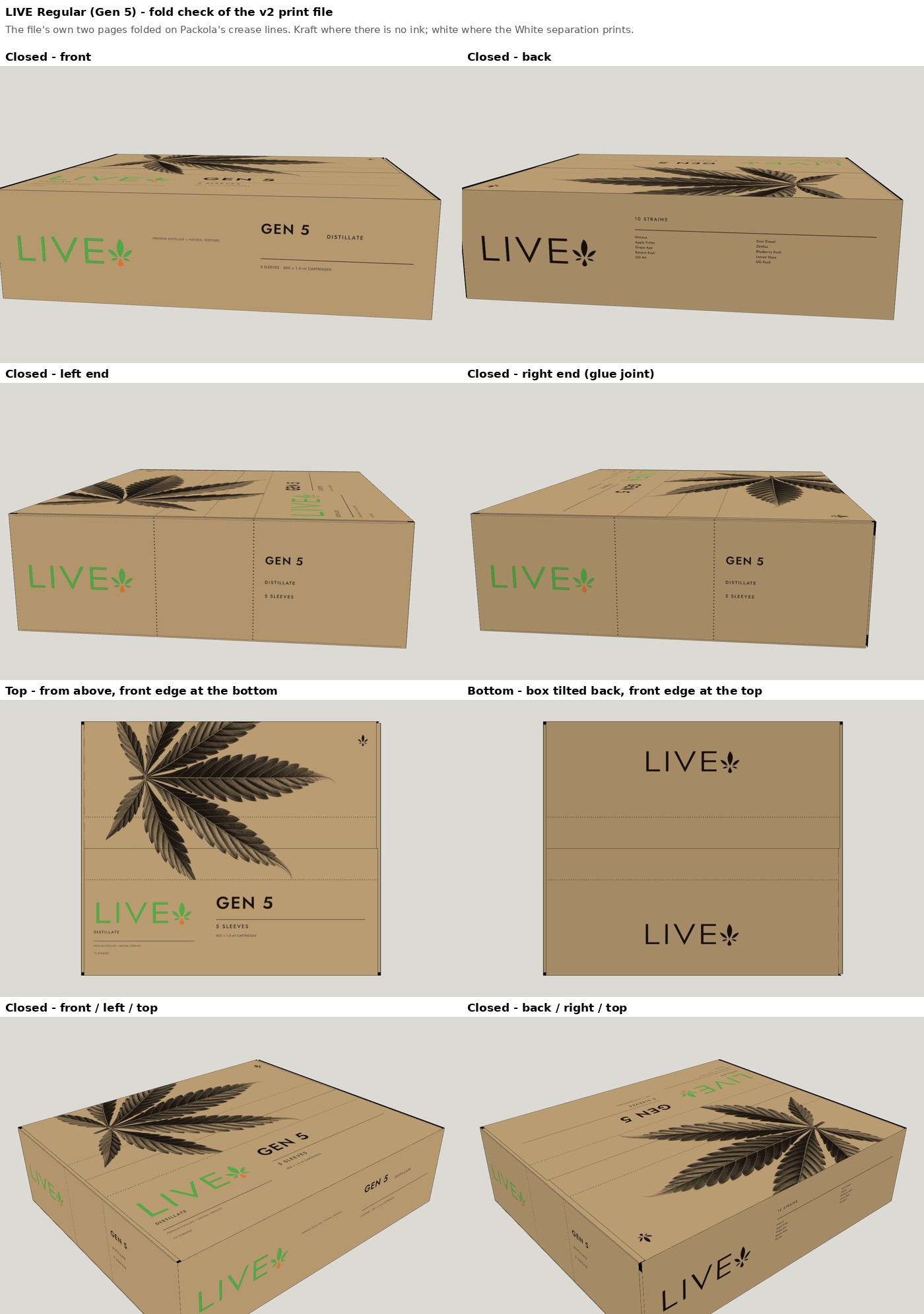

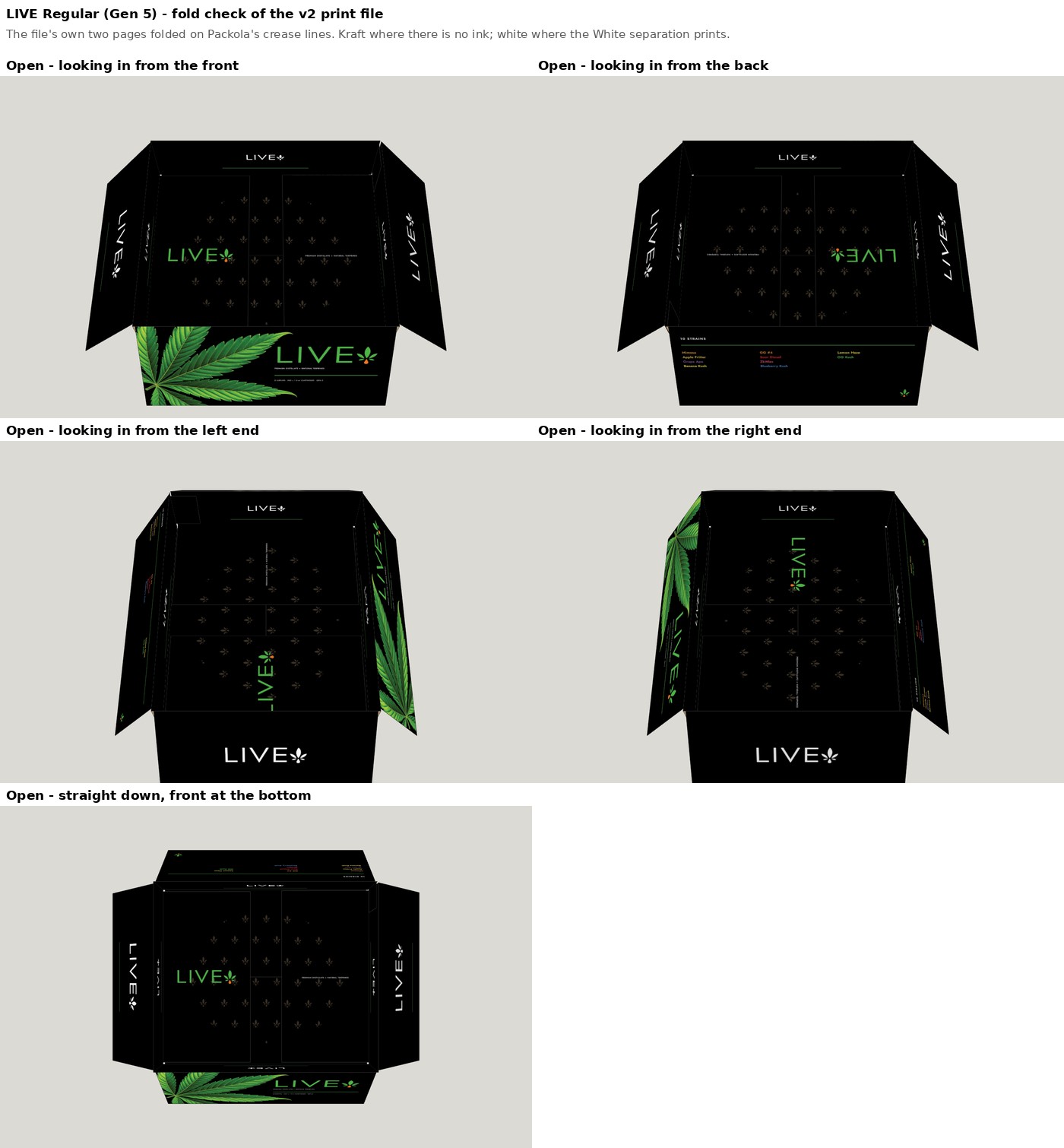

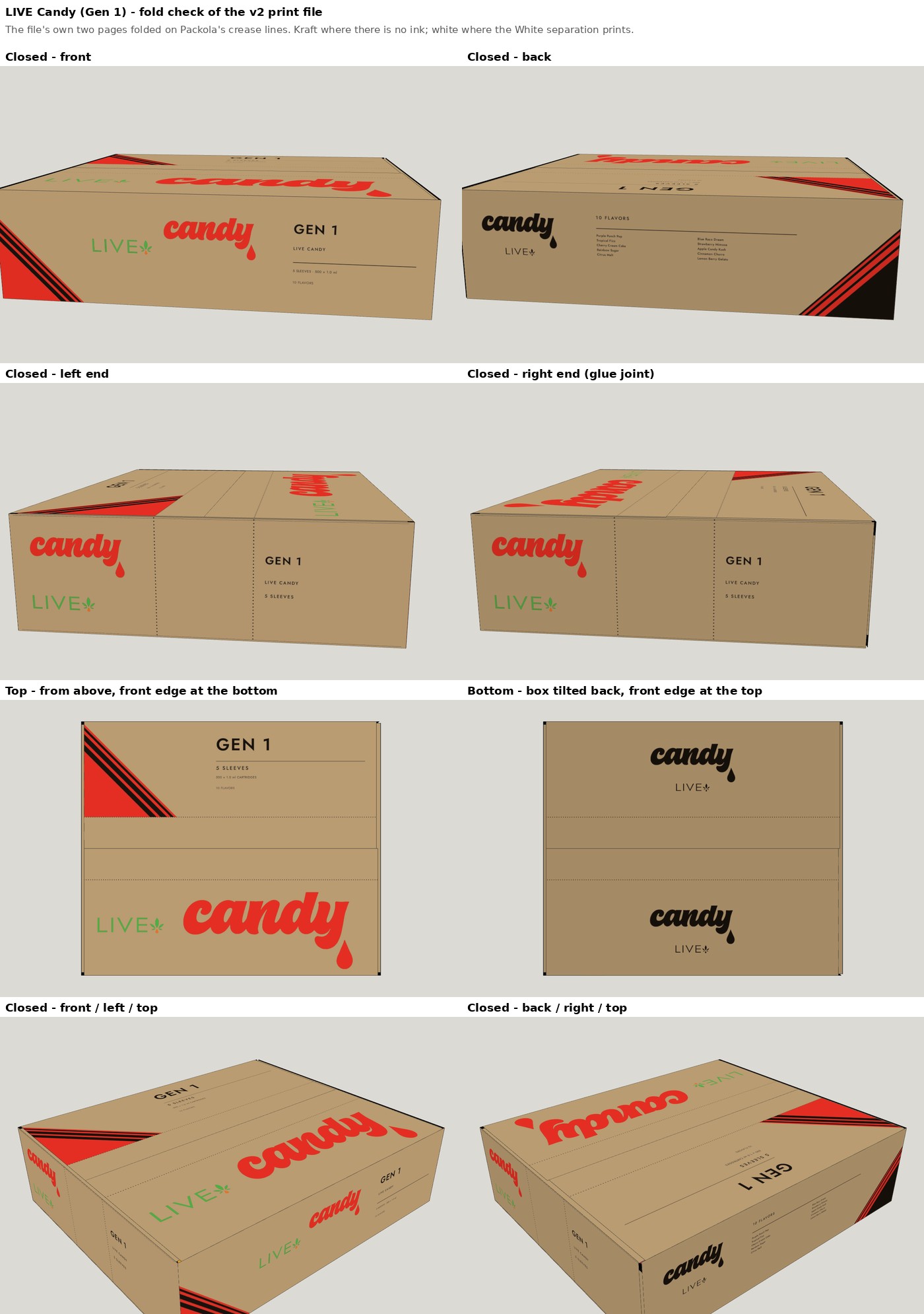

3D check the print flats cut back into the model

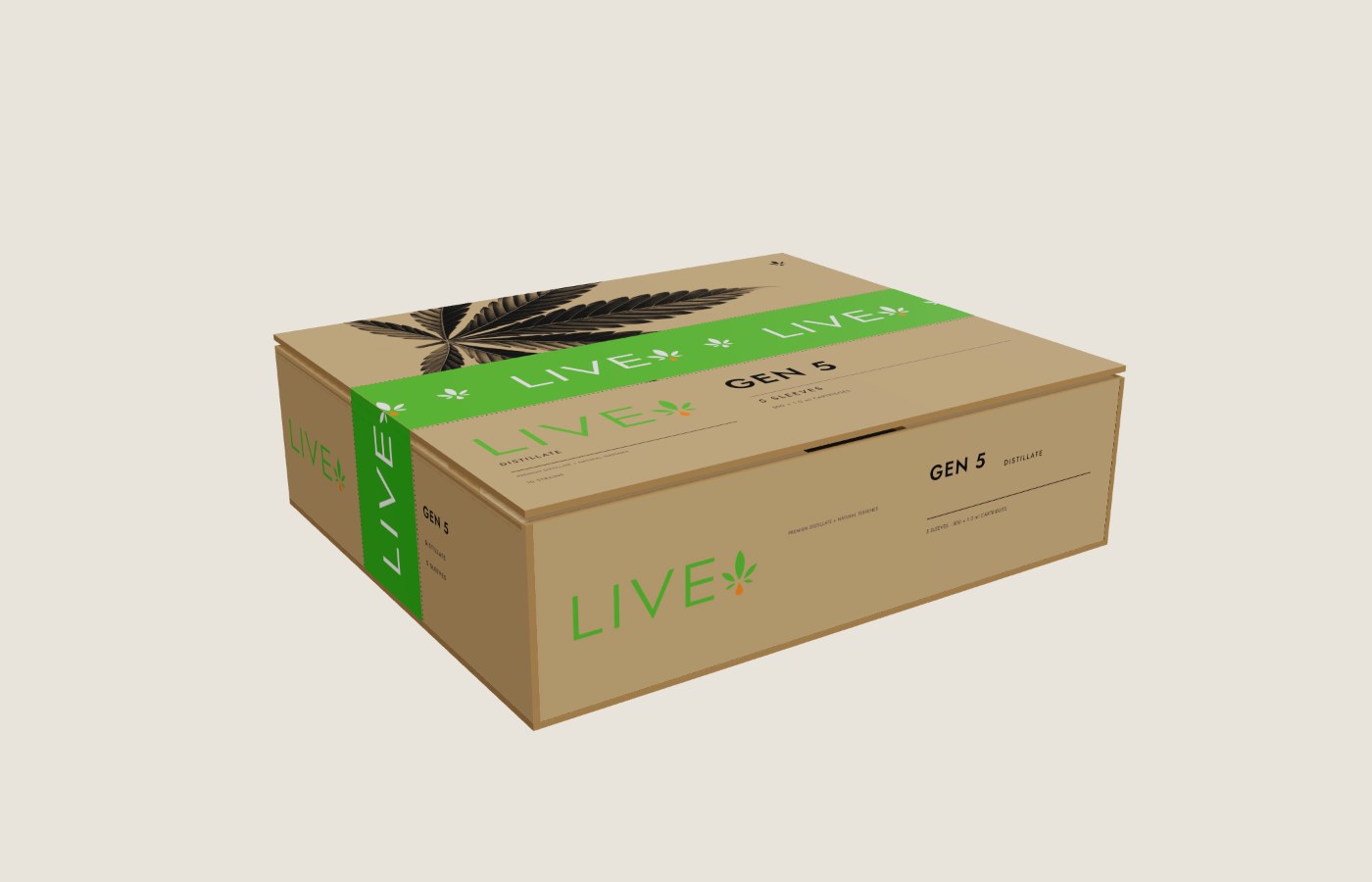

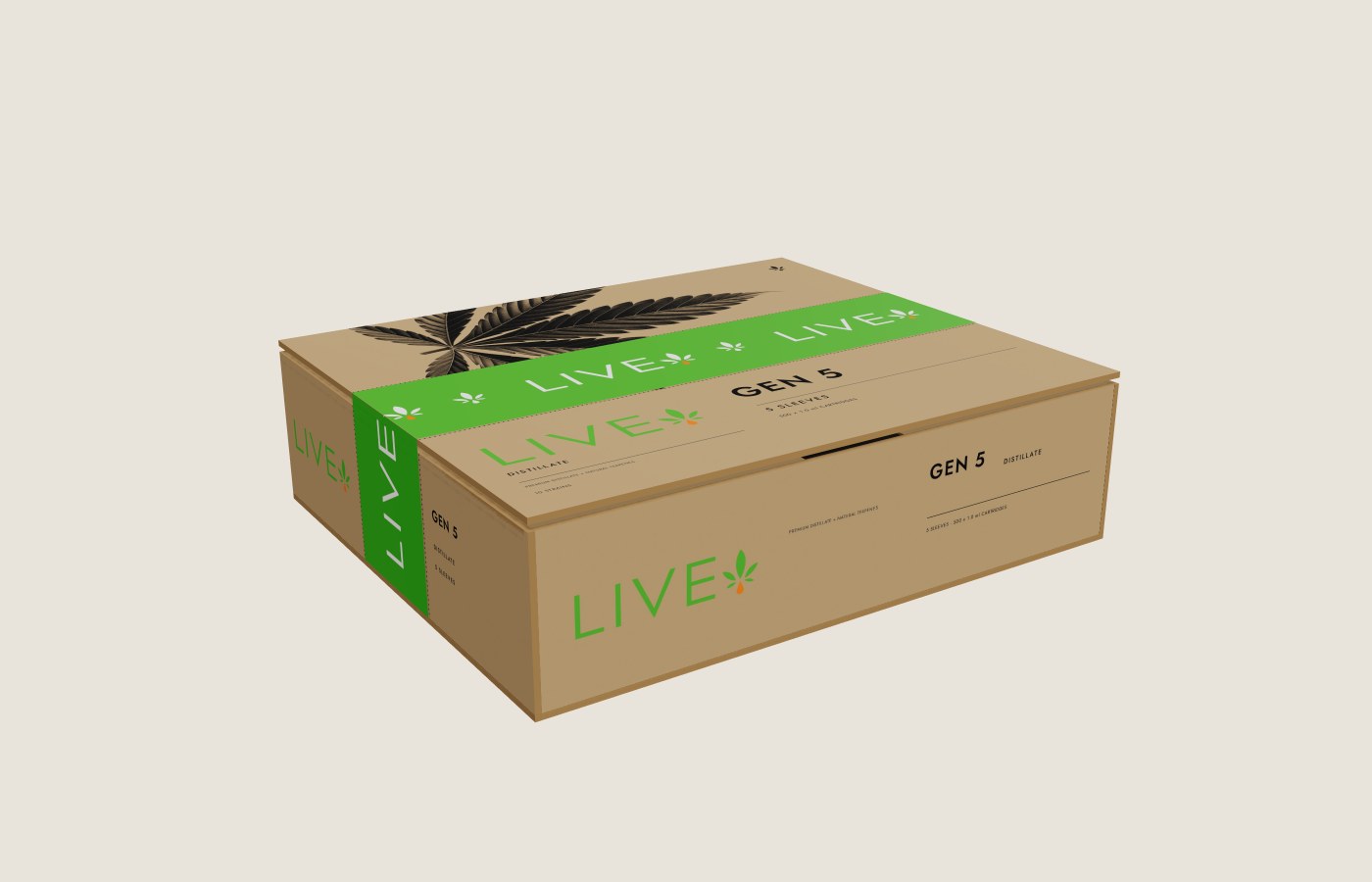

regular_hero — Closed and taped (2.75 in tape)

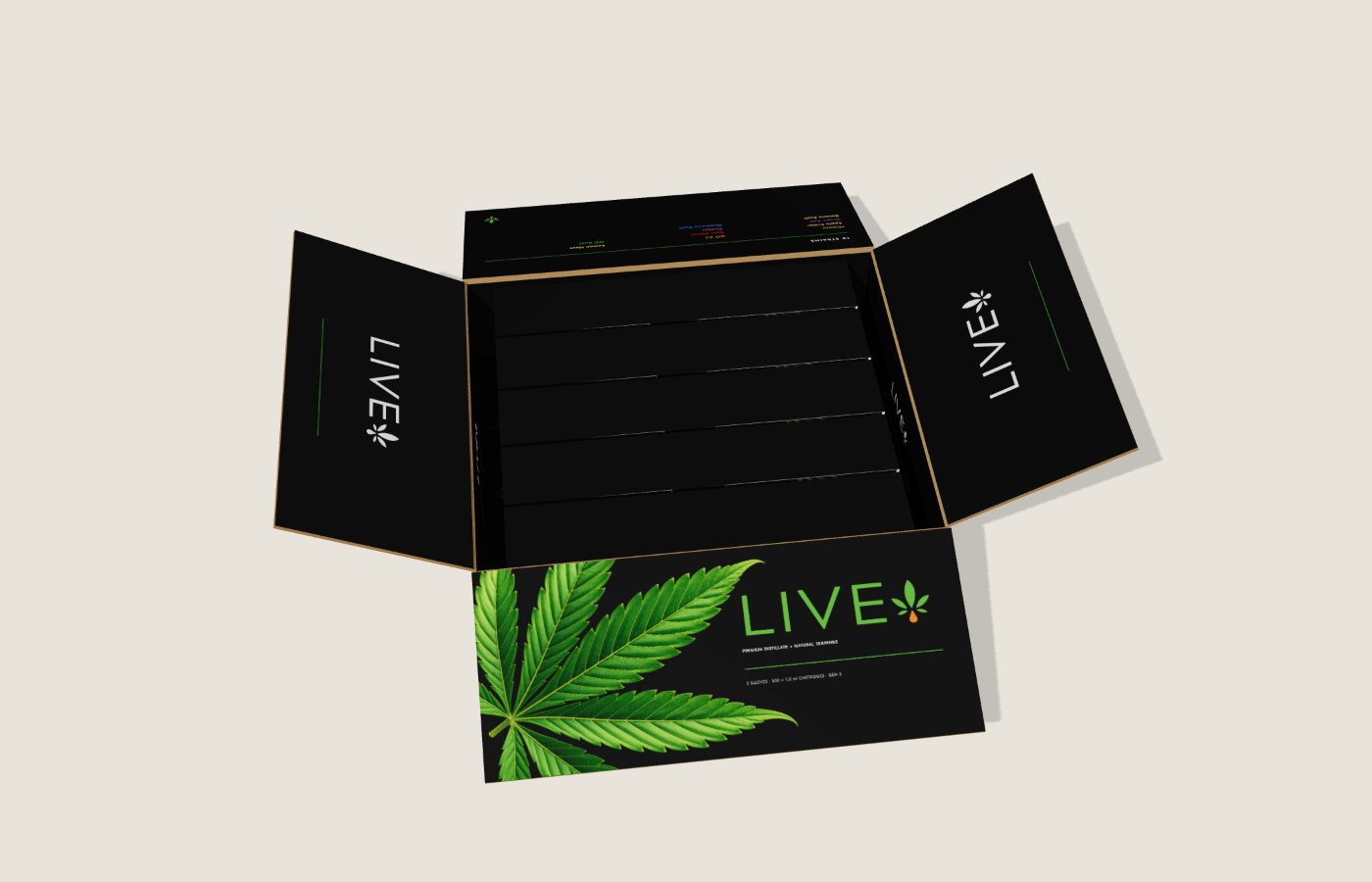

regular_open — Open — the print files folded back into the box

regular_open_empty — Open, no sleeves — the floor is the two end flaps

Candy · Gen 1 — files

Download the complete release zip 4.3 MB Box PRINT PDF — upload this to Packola (p1 outside, p2 inside) 1.5 MB Tape PRINT PDF — upload this to UPrinting 0.0 MB Box with the vendor die overlaid (check only) 1.5 MB White-ink plate (black = white ink) 0.3 MB

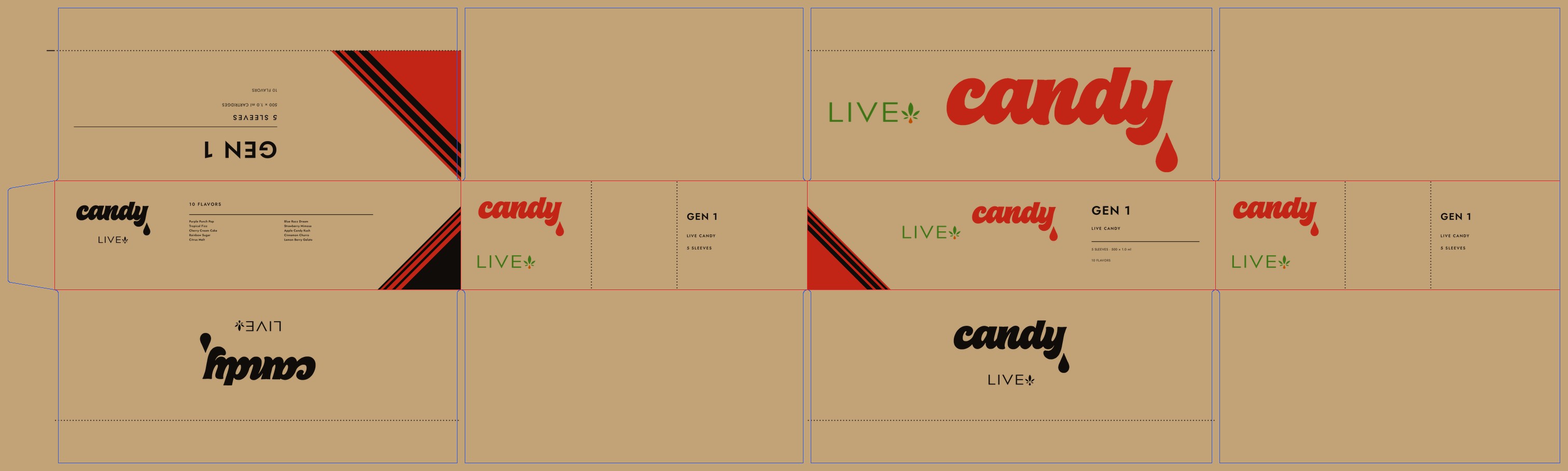

The two flats on Packola's die red = crease · blue = cut · 0.25 in bleed all round

Tape on UPrinting's template 2.75 in × 12 in tile, two 6 in units, 1/8 in bleed

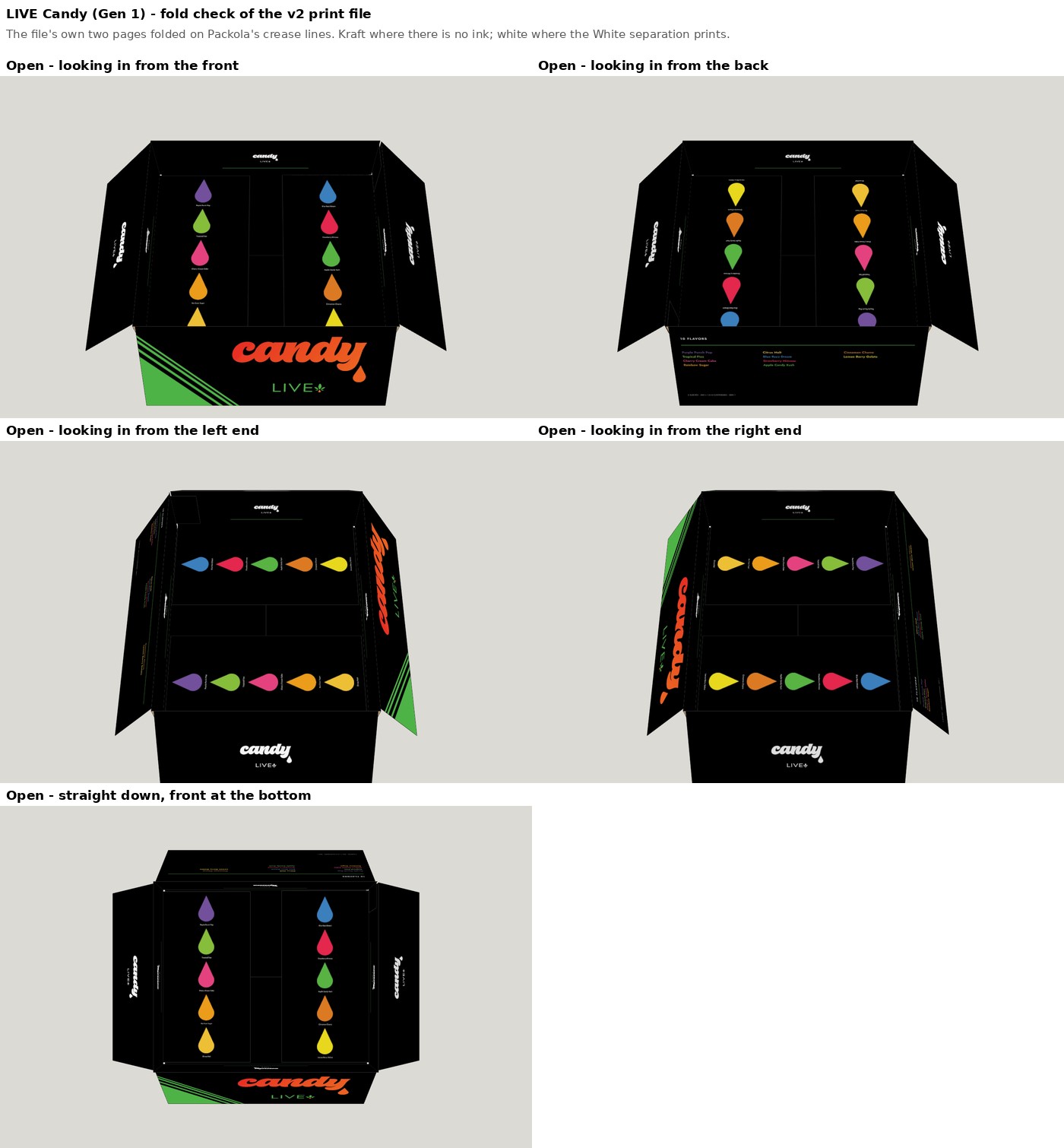

3D check the print flats cut back into the model

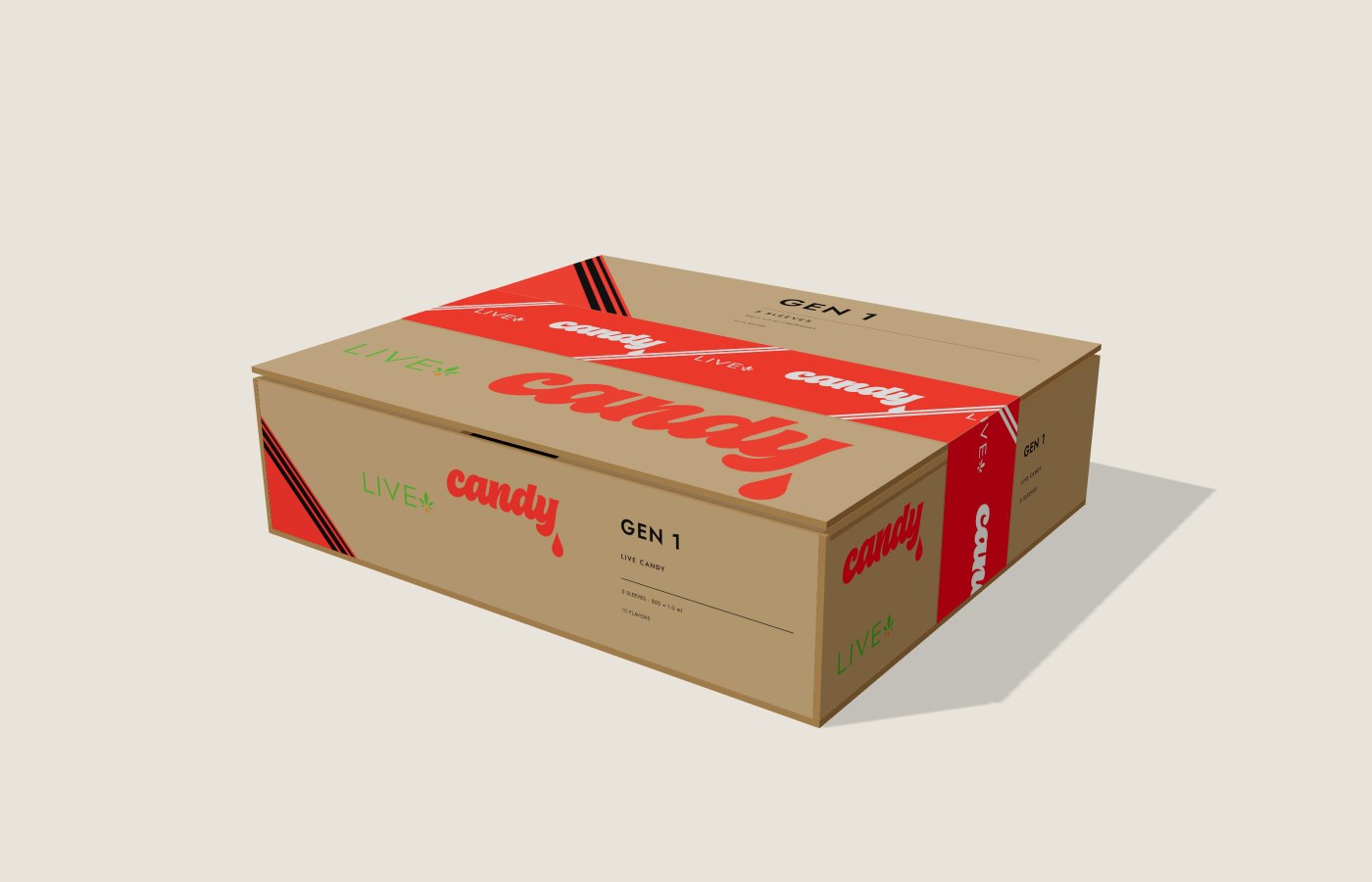

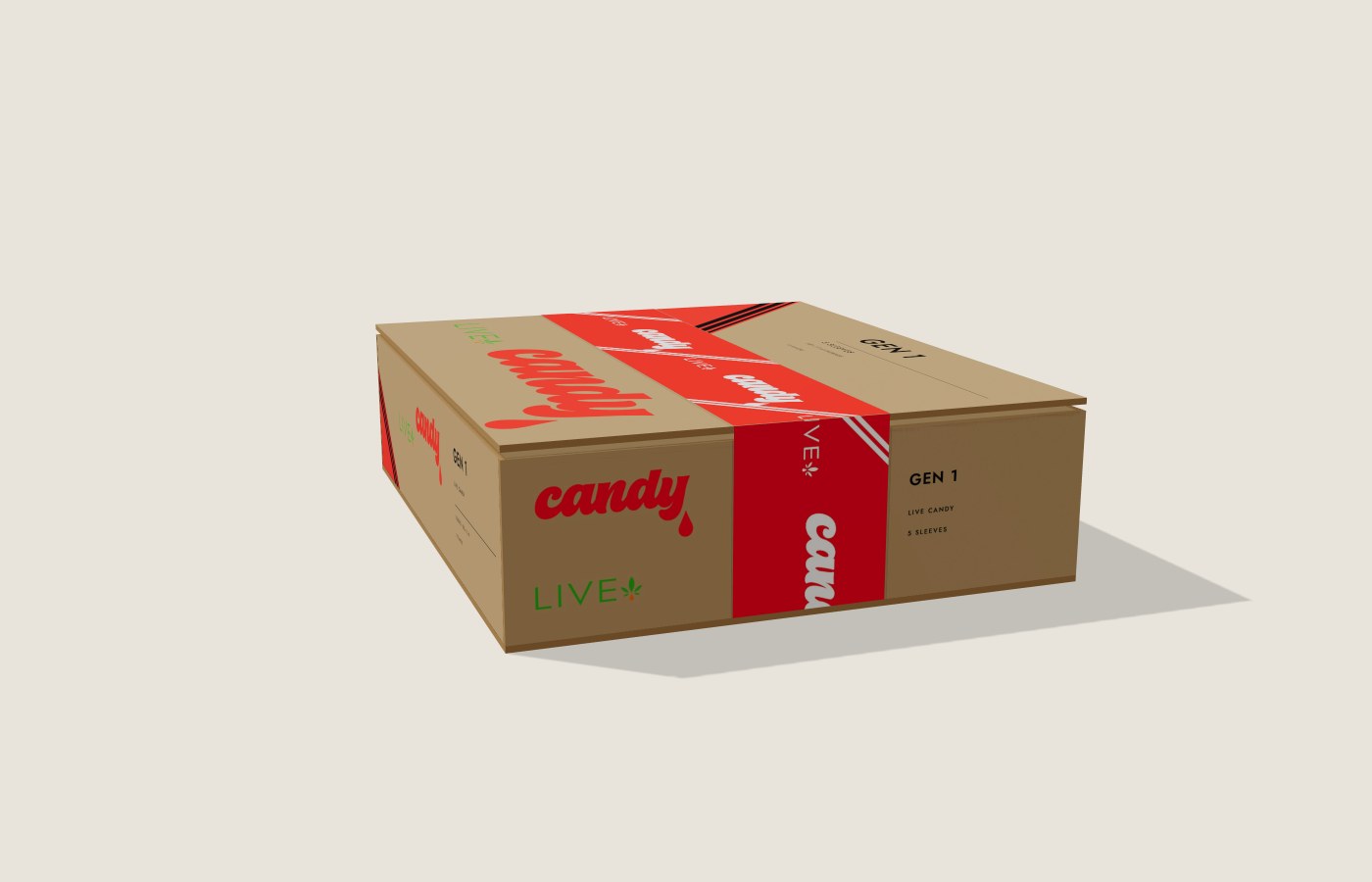

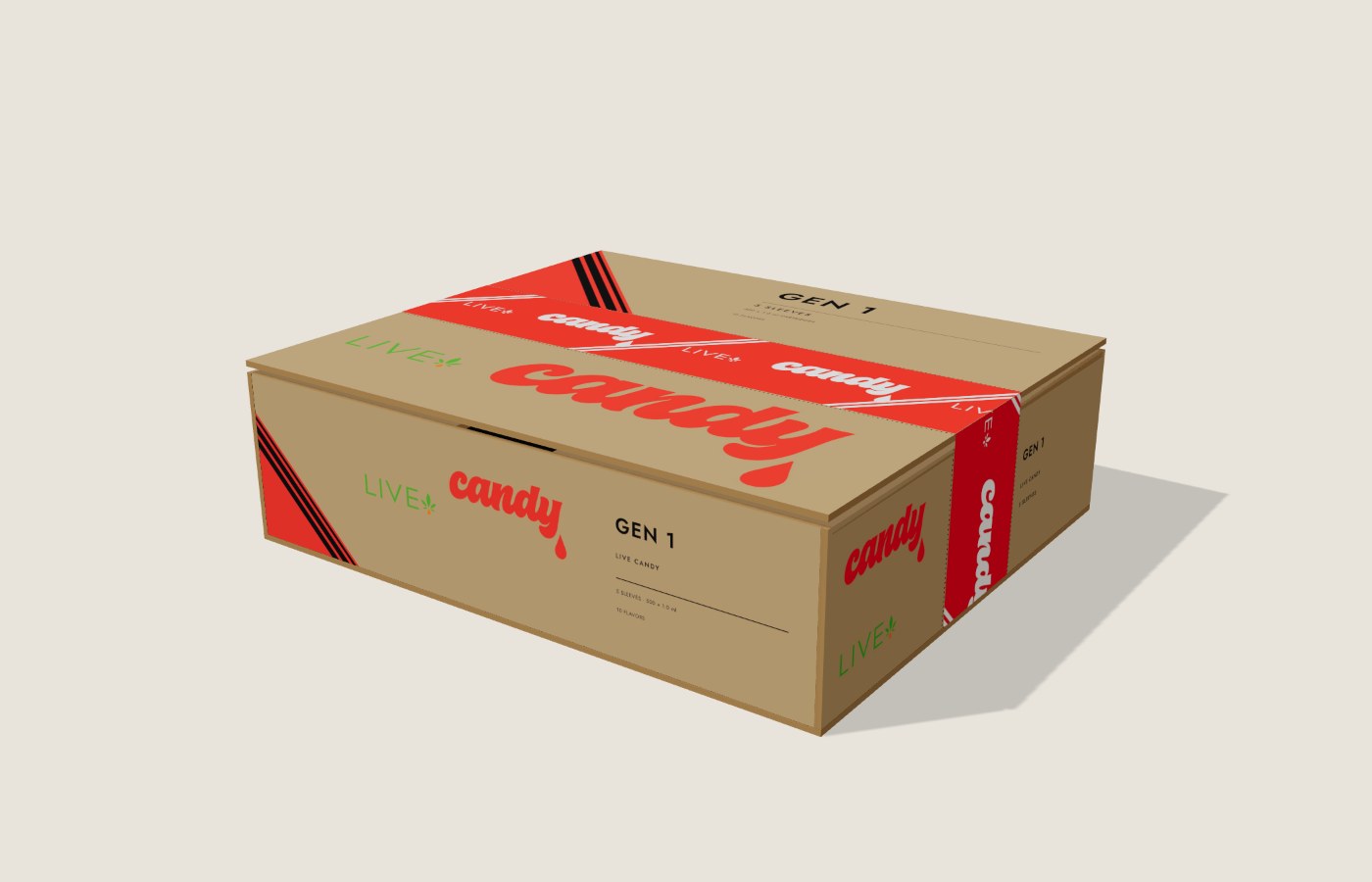

candy_heroR — Closed and taped (2.75 in tape)

candy_open — Open — the print files folded back into the box

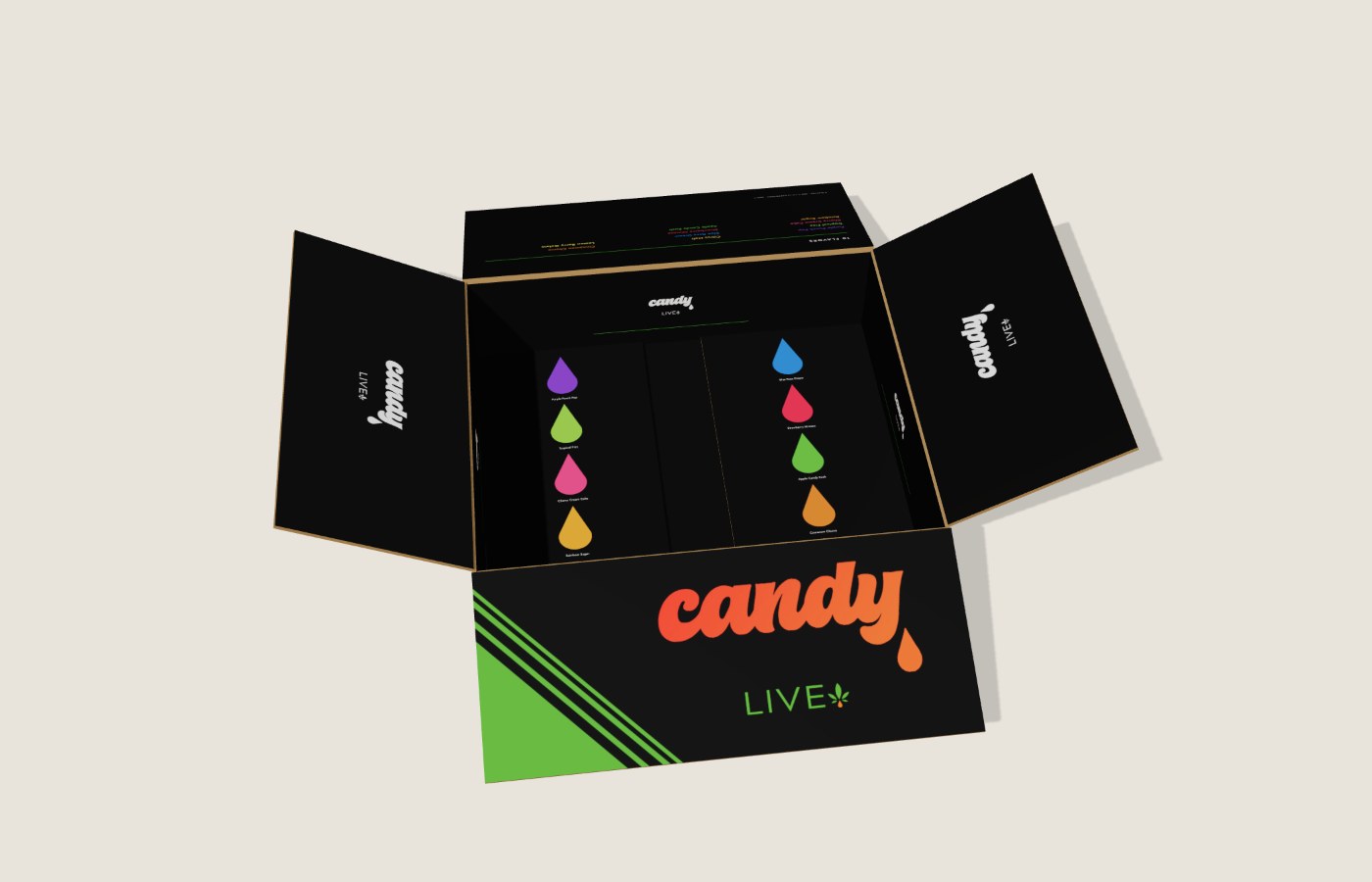

candy_open_empty — Open, no sleeves — the floor is the two end flaps

Open sleeves inside tape on

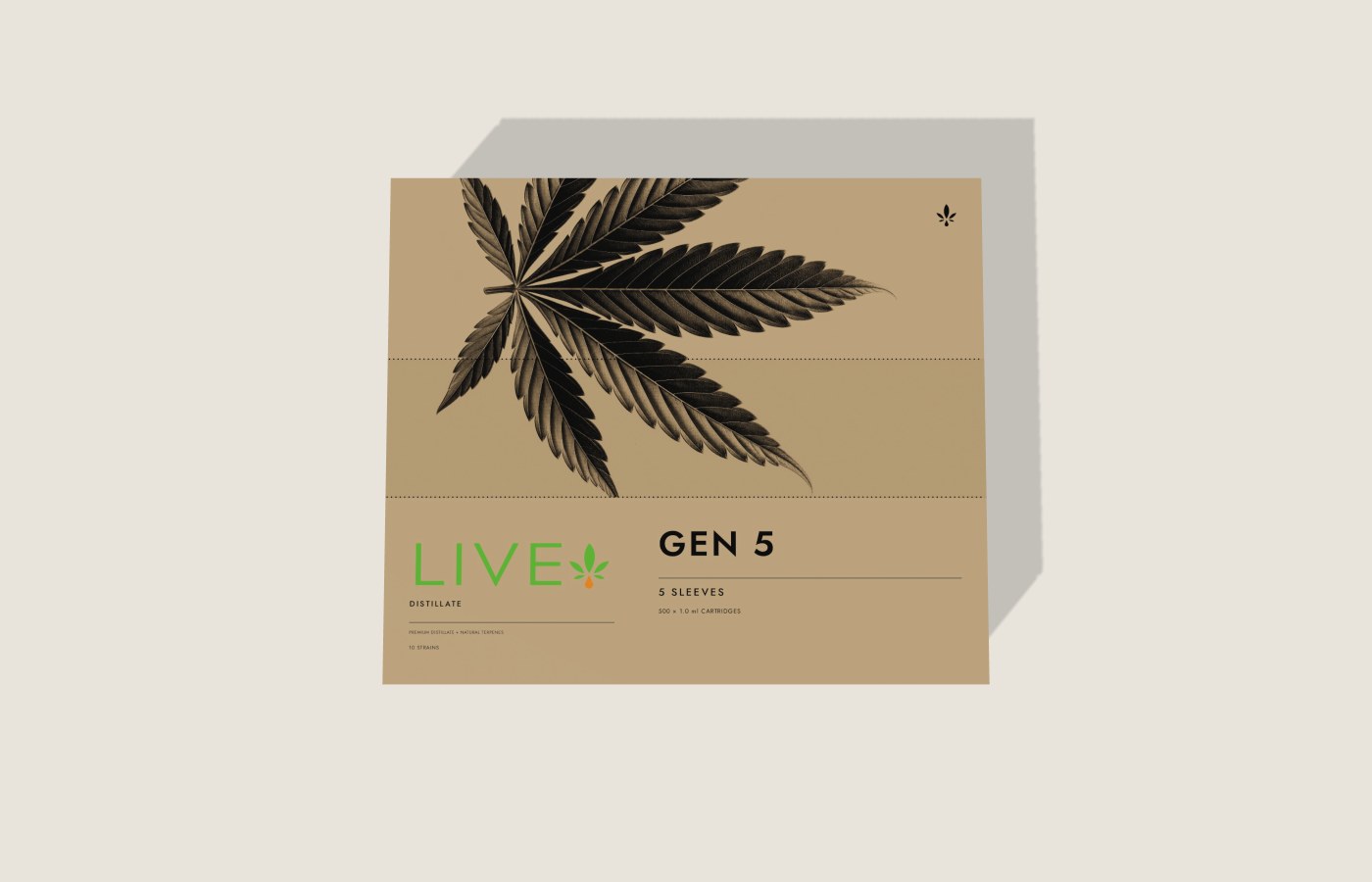

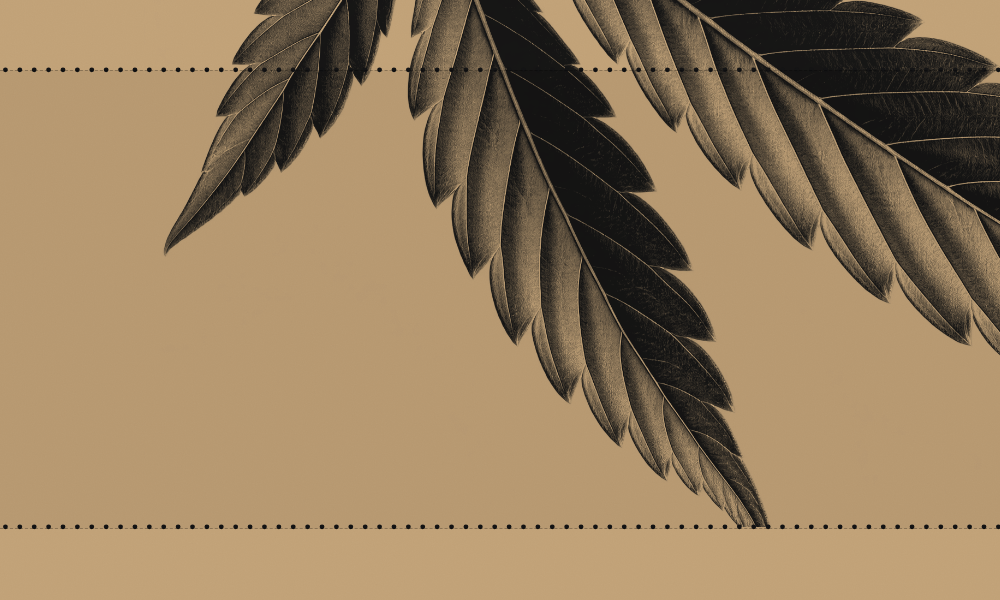

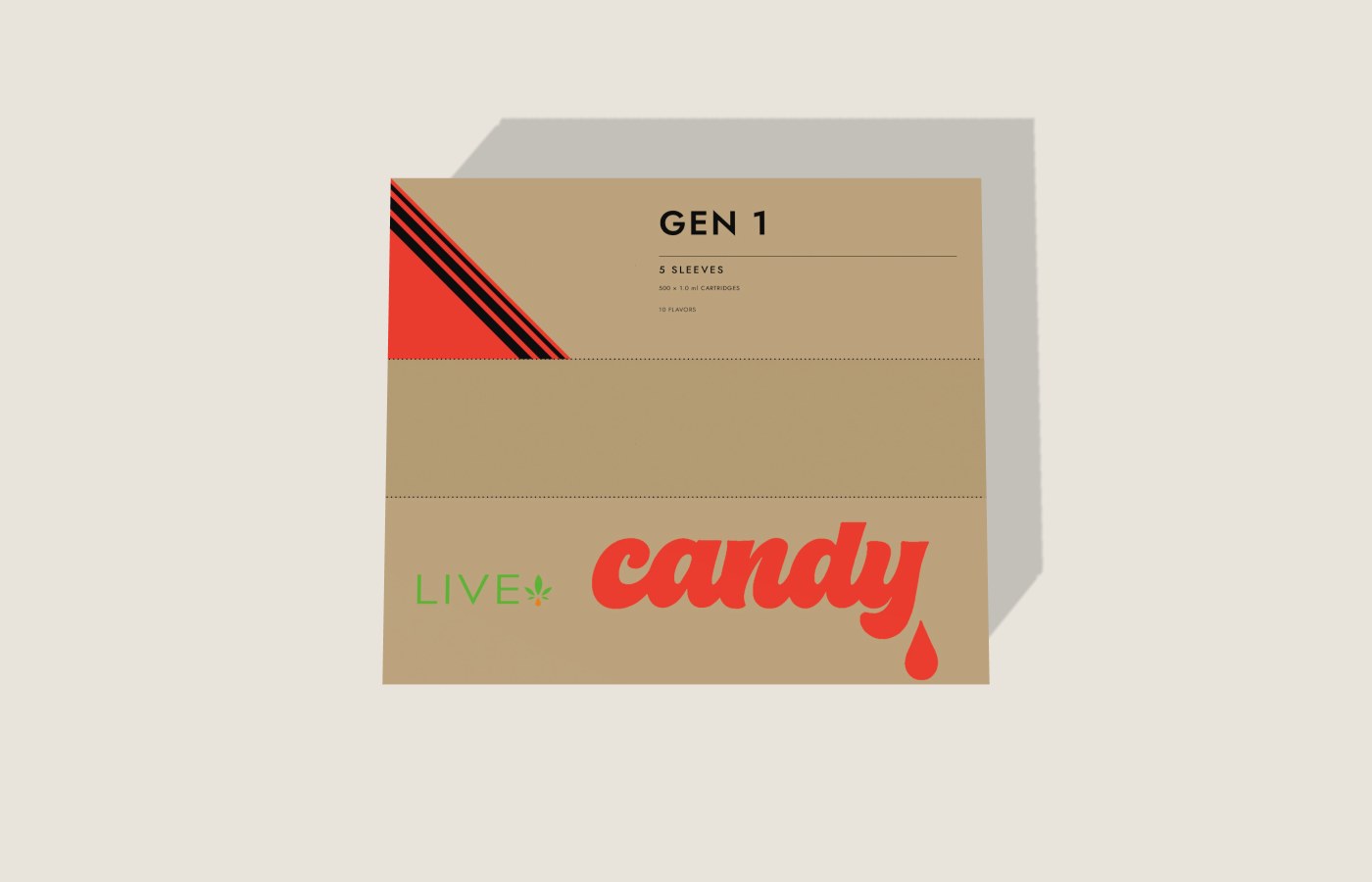

Rob's 19 Sep change — tape guides. A printed dotted line now marks each edge of the 3 in tape path on both lines: along the top seam, along the bottom seam and down both ends (black dots, 0.8 mm at 2.4 mm pitch, real ink). Untick "tape on" above to see them bare. Regular top, no tape · Candy top, no tape · close-up at print scale.

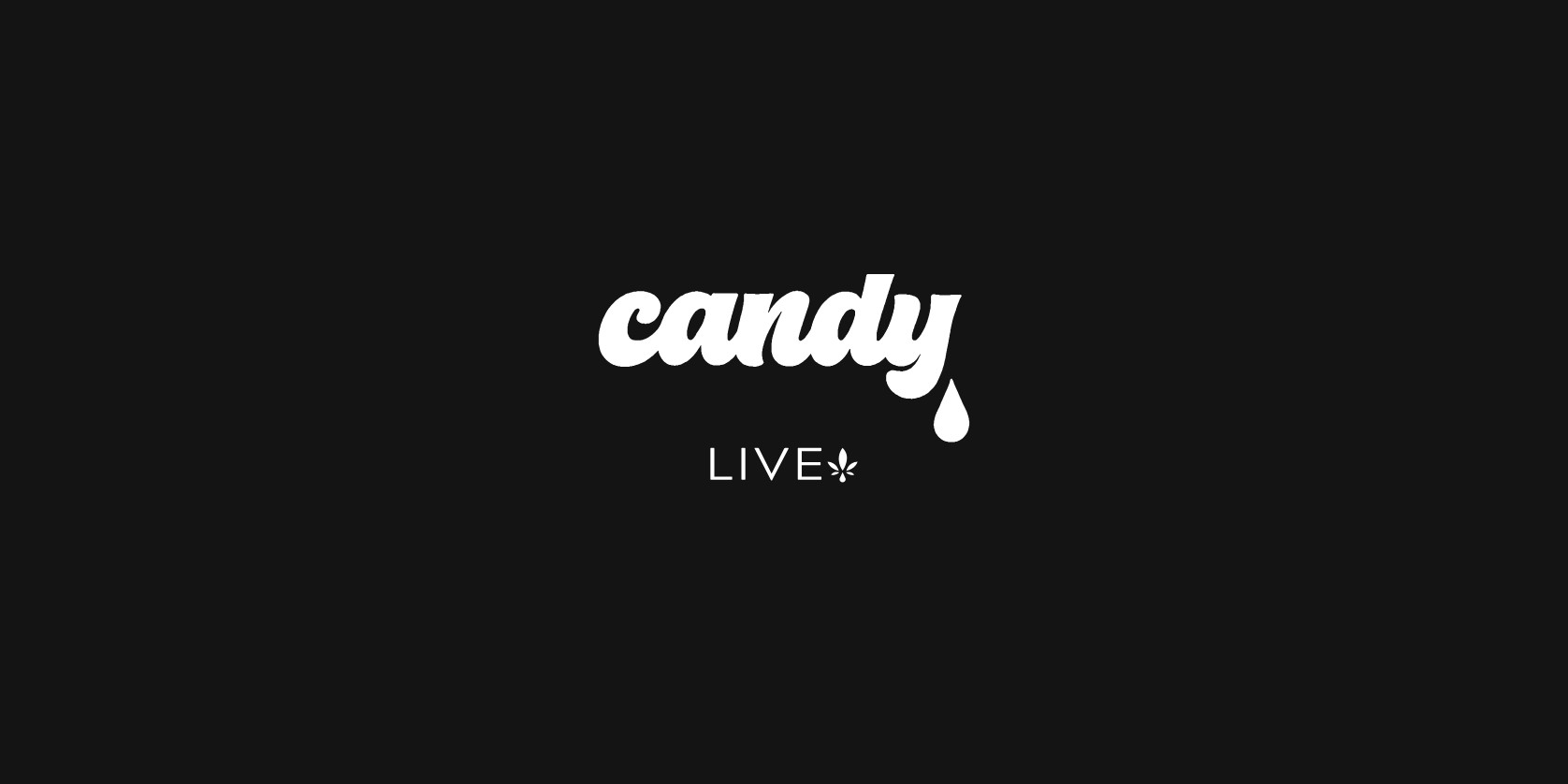

What changed from the mailer. A shipping box has no lid — two big flaps meet on a seam that runs along the 13 in length, two smaller flaps fold under, and the tape seals the seam and wraps down both 11 in ends. So the outside top is now two 13 × 4 in bands either side of the tape (the Regular leaf lies under the tape band; the Candy script sits on the front band), the long 13 in faces are clean of tape, and the inside "reveal" moved to the four flap insides — the front flap carries the hero (leaf / candy lockup), the back flap the 10 strains / flavors, the end flaps the mark. Every inside flap is set so it reads upright when it is folded out toward you.

Regular · Gen 5 distillate

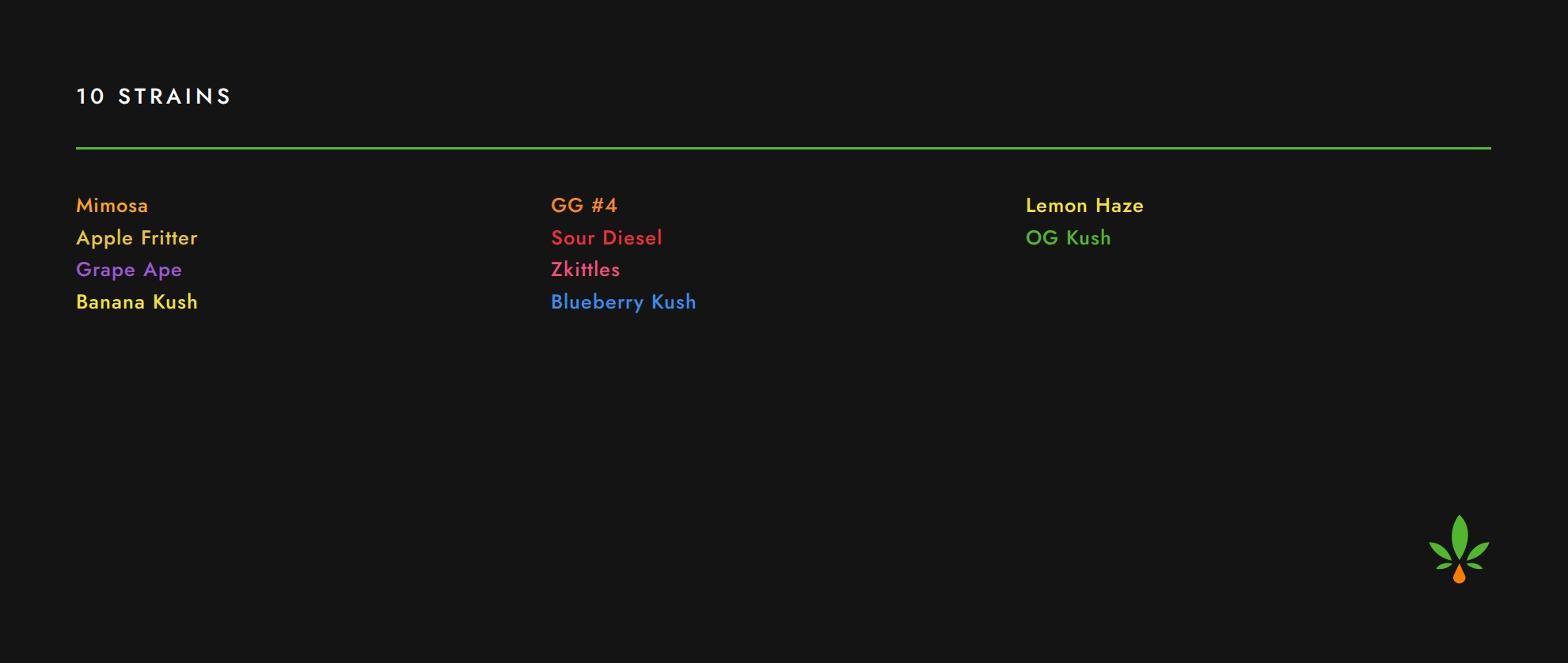

Kraft + black + LIVE green. The top's back band is the Gen 5 leaf as a black-ink botanical, its lower leaflets running under the green tape; the front band carries the lockup, DISTILLATE, GEN 5 and the count. Inside: black, the leaf in colour with the lockup on the front flap, the 10 strains in their colours on the back flap.

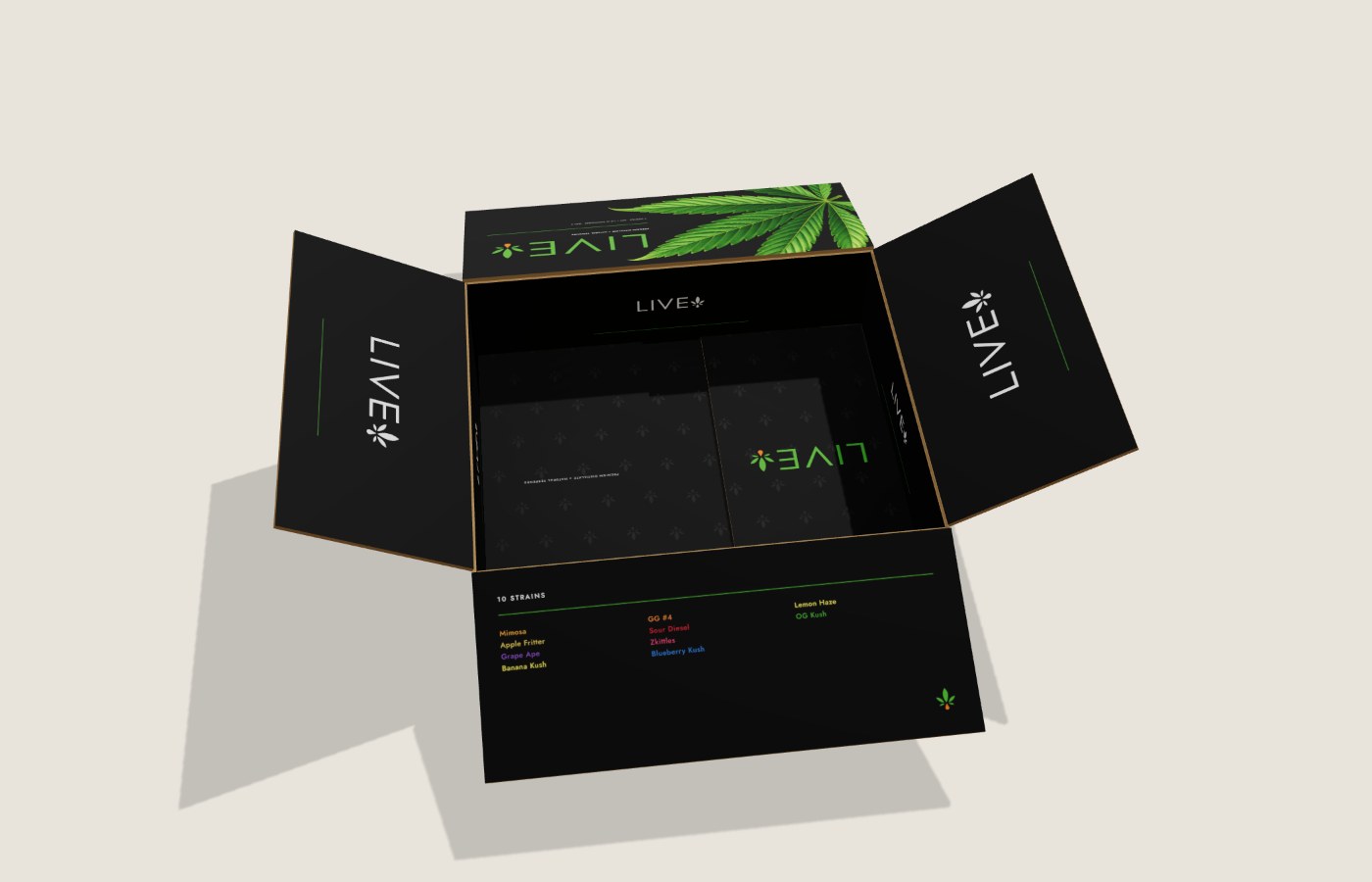

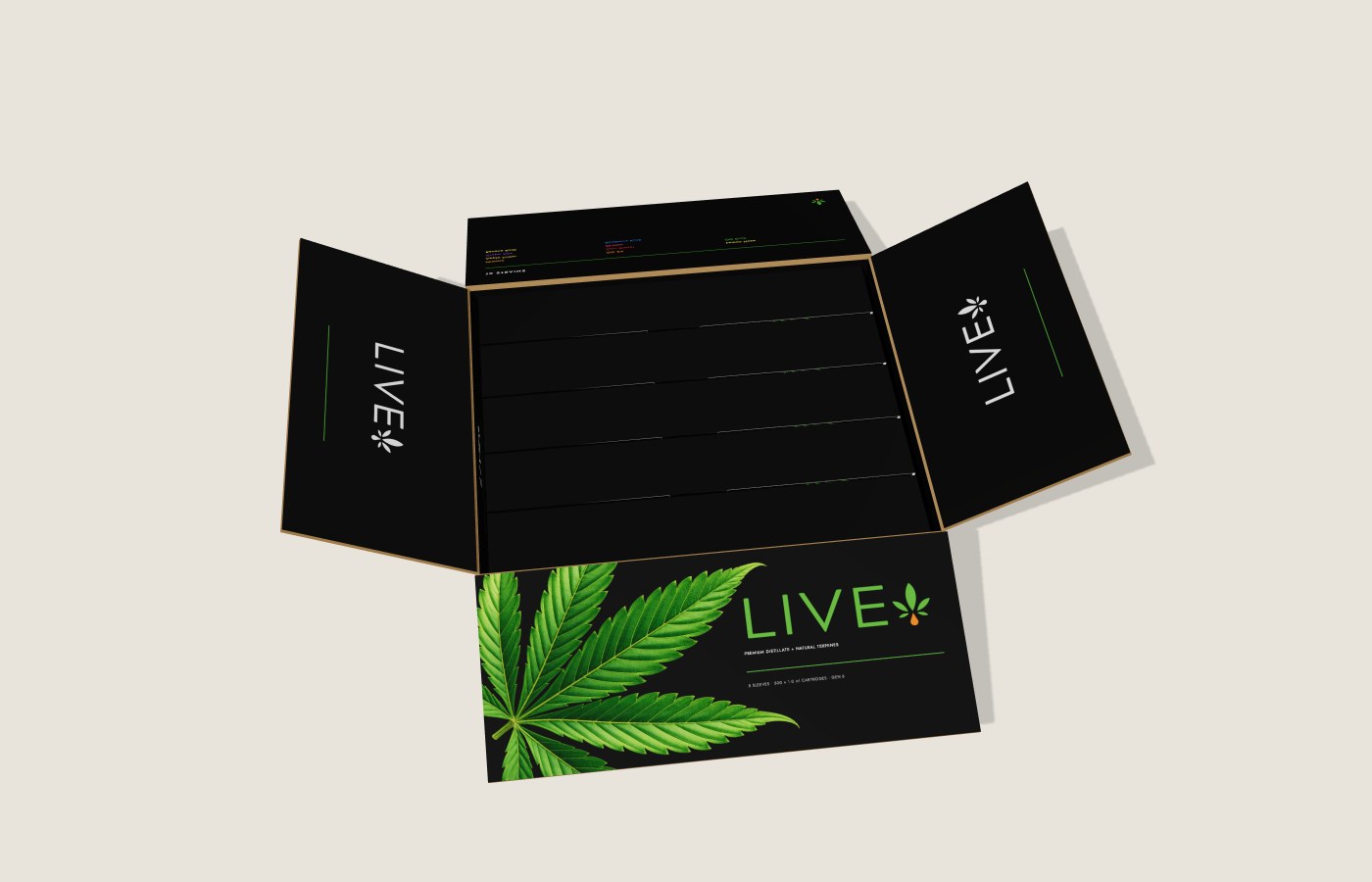

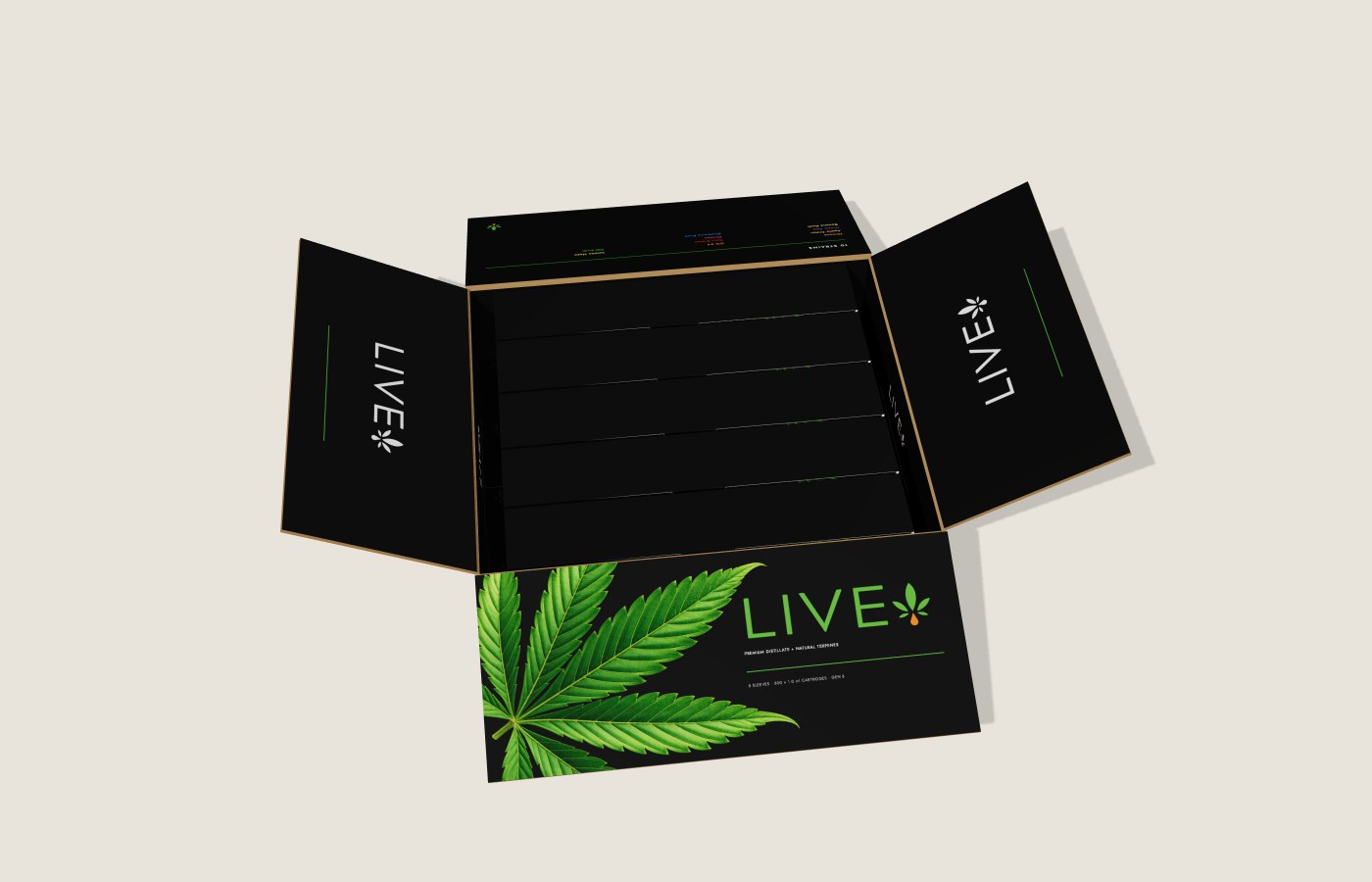

Regular · Gen 5 distillate open — Flaps open — the inside print (sleeves shown upright, five across — see the fit check below)

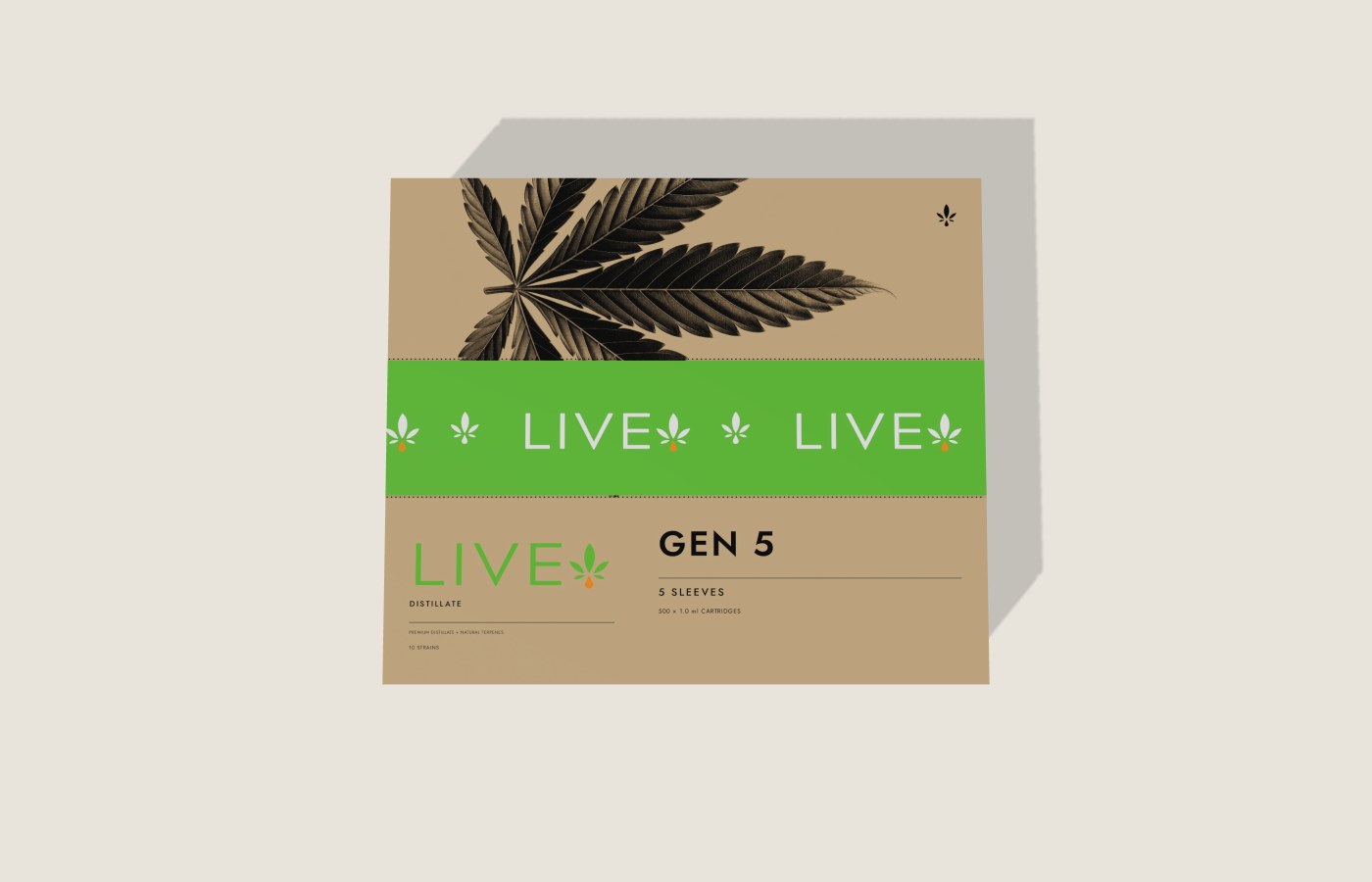

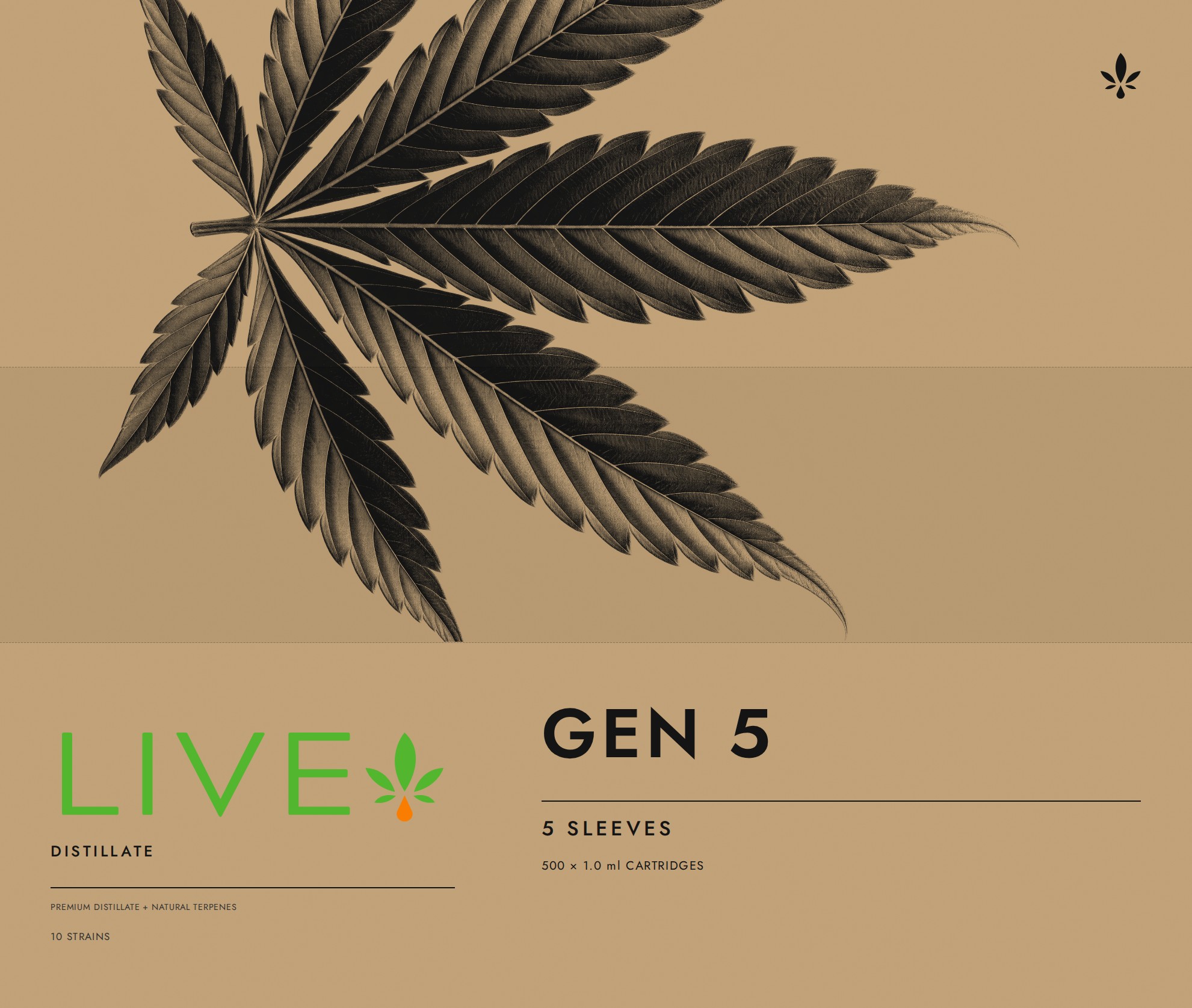

Regular · Gen 5 distillate top — From above

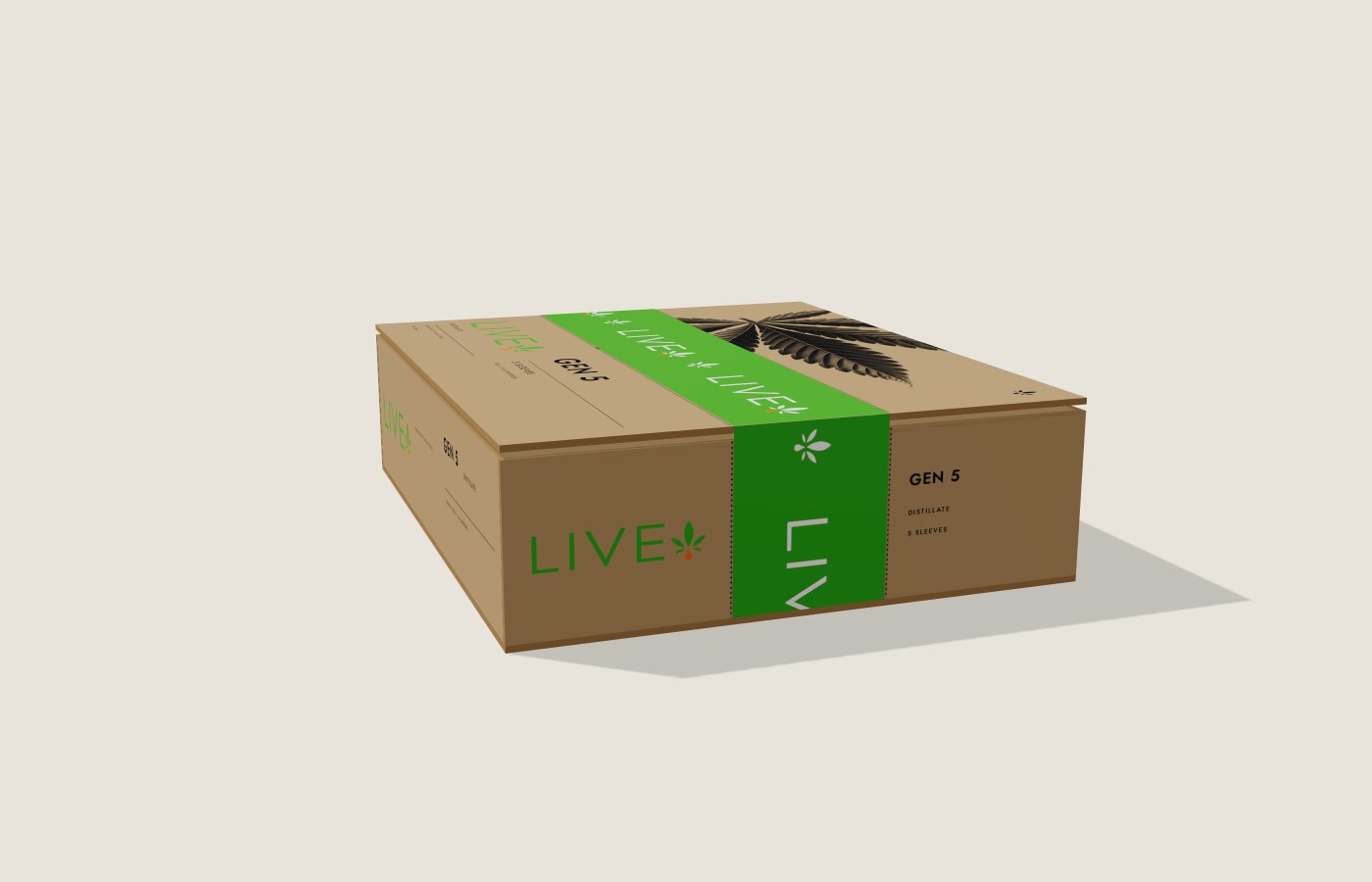

Regular · Gen 5 distillate end — End panel

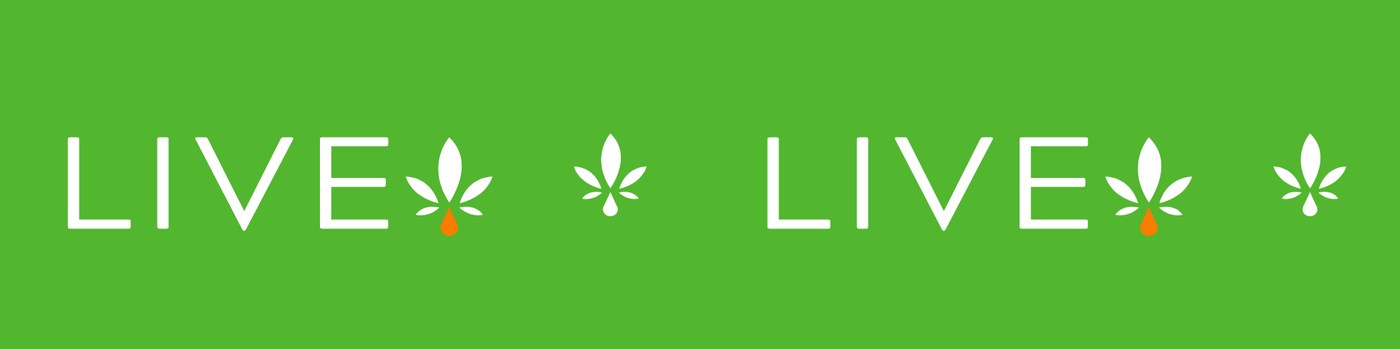

Tape · 2.75 in wide (UPrinting water-activated) · 6 in unit, 12 in tile green ground · white lockup · orange drop

Regular · Gen 5 distillate tape — Two repeats shown · ground #52B62F

Outside kraft board, printed

**Top — the two major flaps**13 × 11 in as one picture · dotted tape guides on the seam

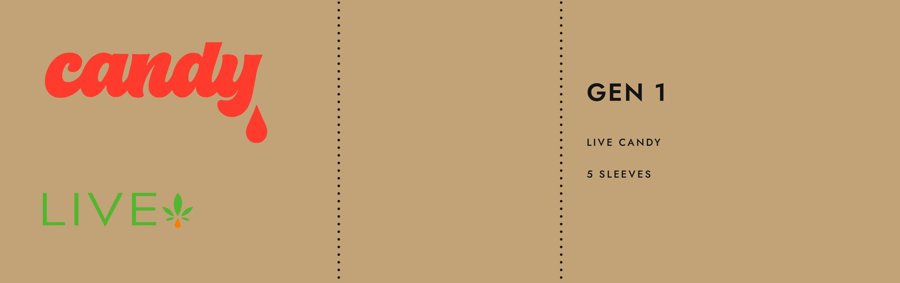

**Ends ×2**11 × 3.25 in — dotted tape guides down the middle

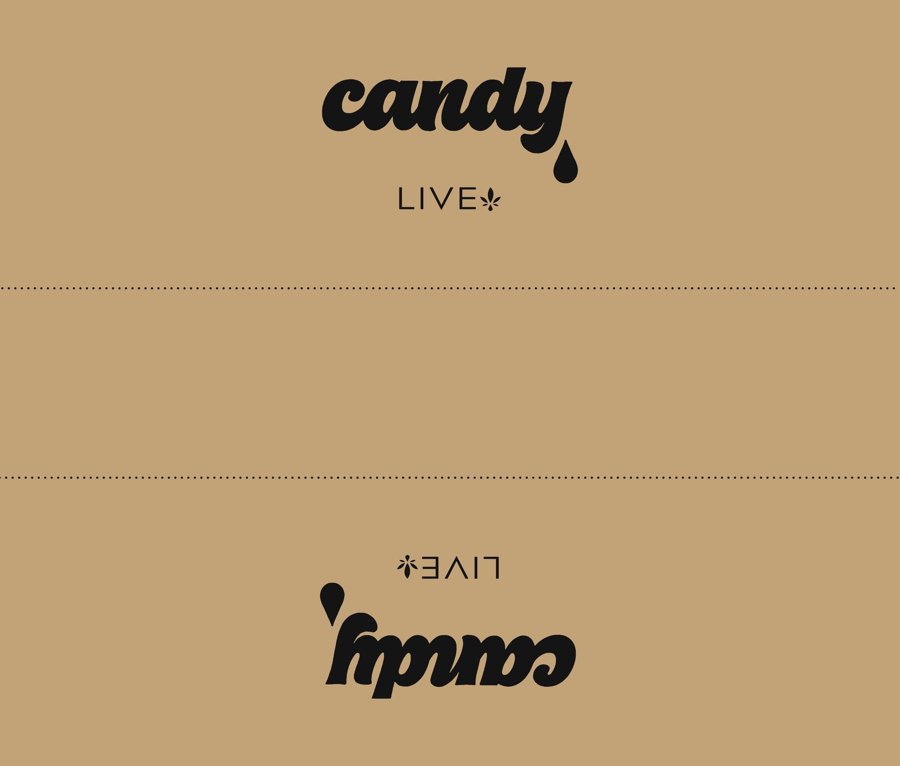

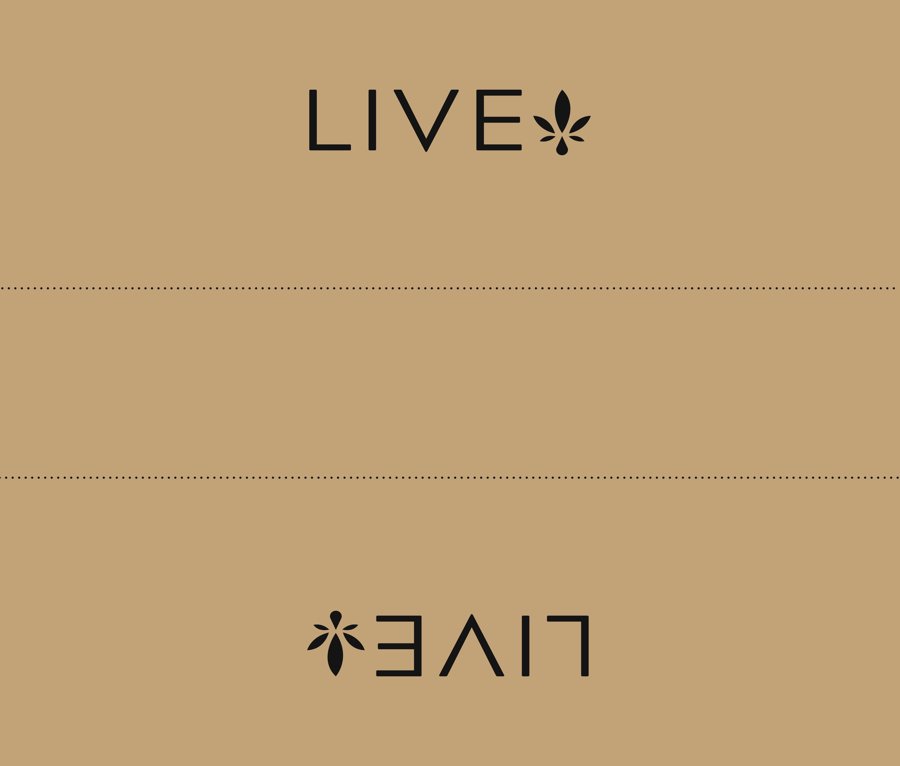

**Bottom**13 × 11 in, taped the same · dotted guides

Inside black flood

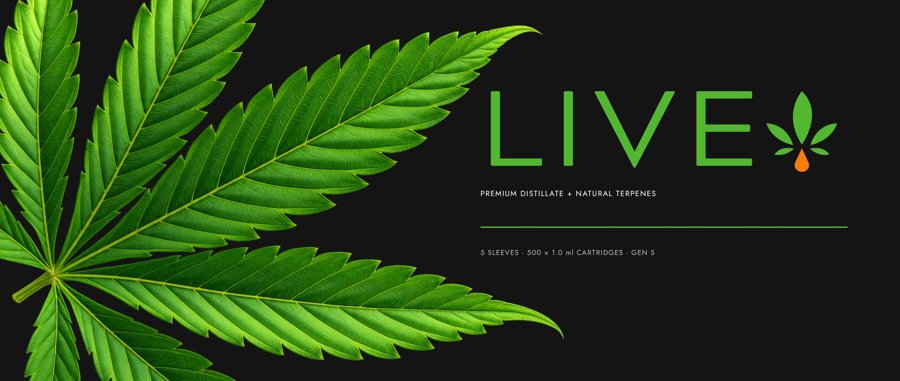

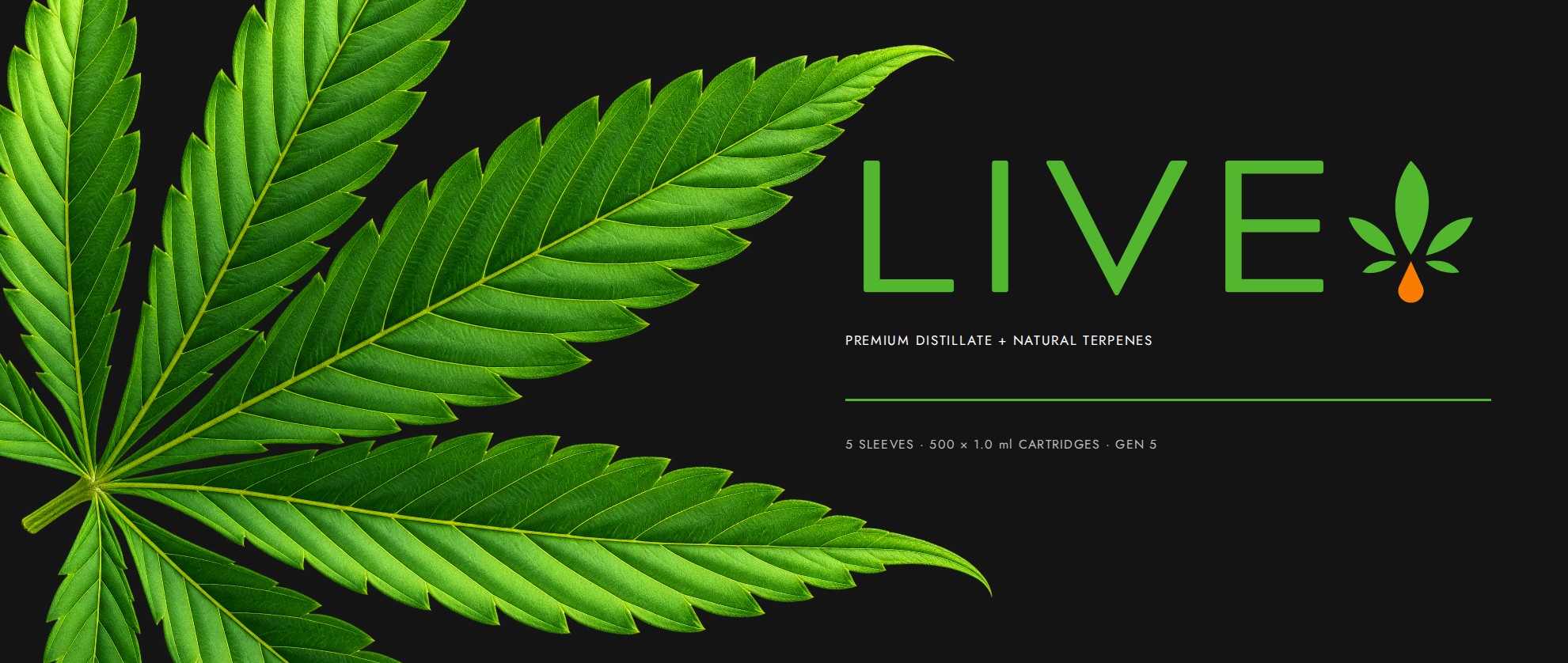

**Inside — front major flap**13 × 5.5 in · reads upright when folded out toward you

**Floor (inside of the bottom flaps)**13 × 11 in, seam across the middle

Candy · Gen 1

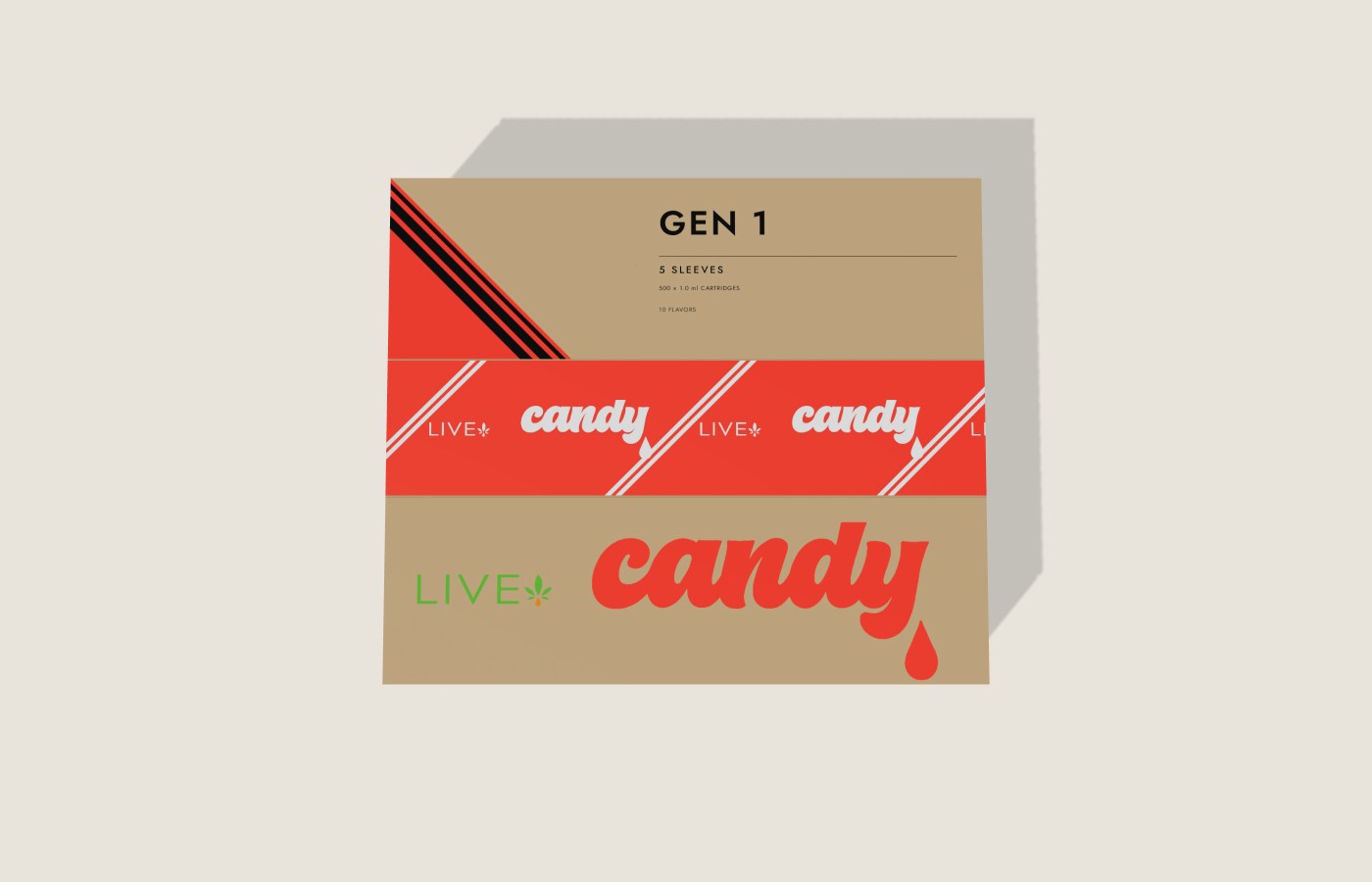

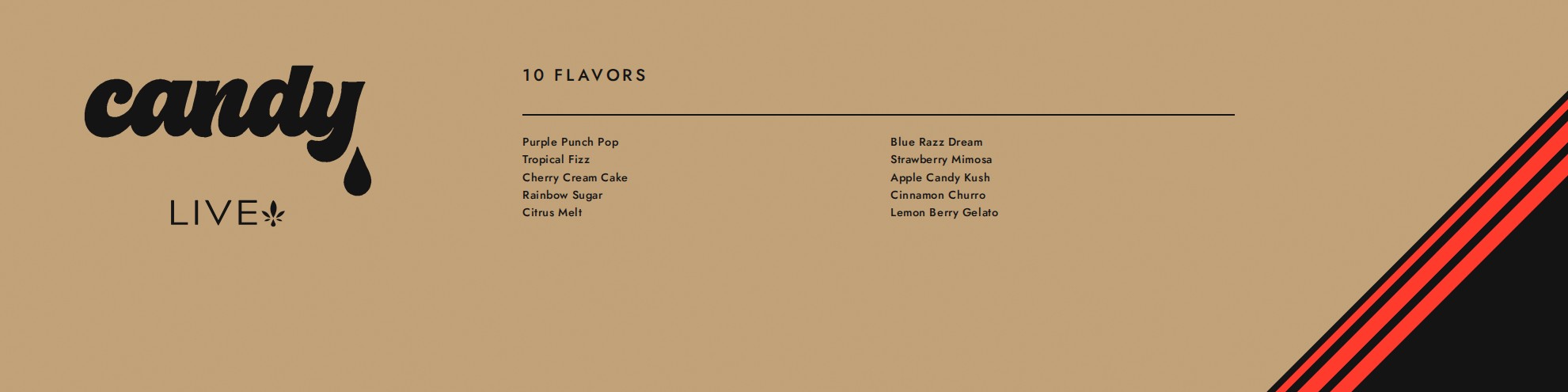

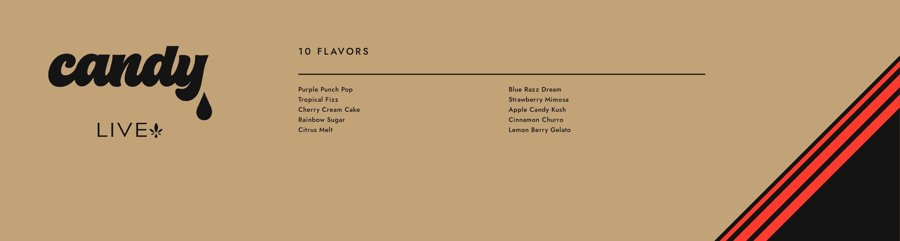

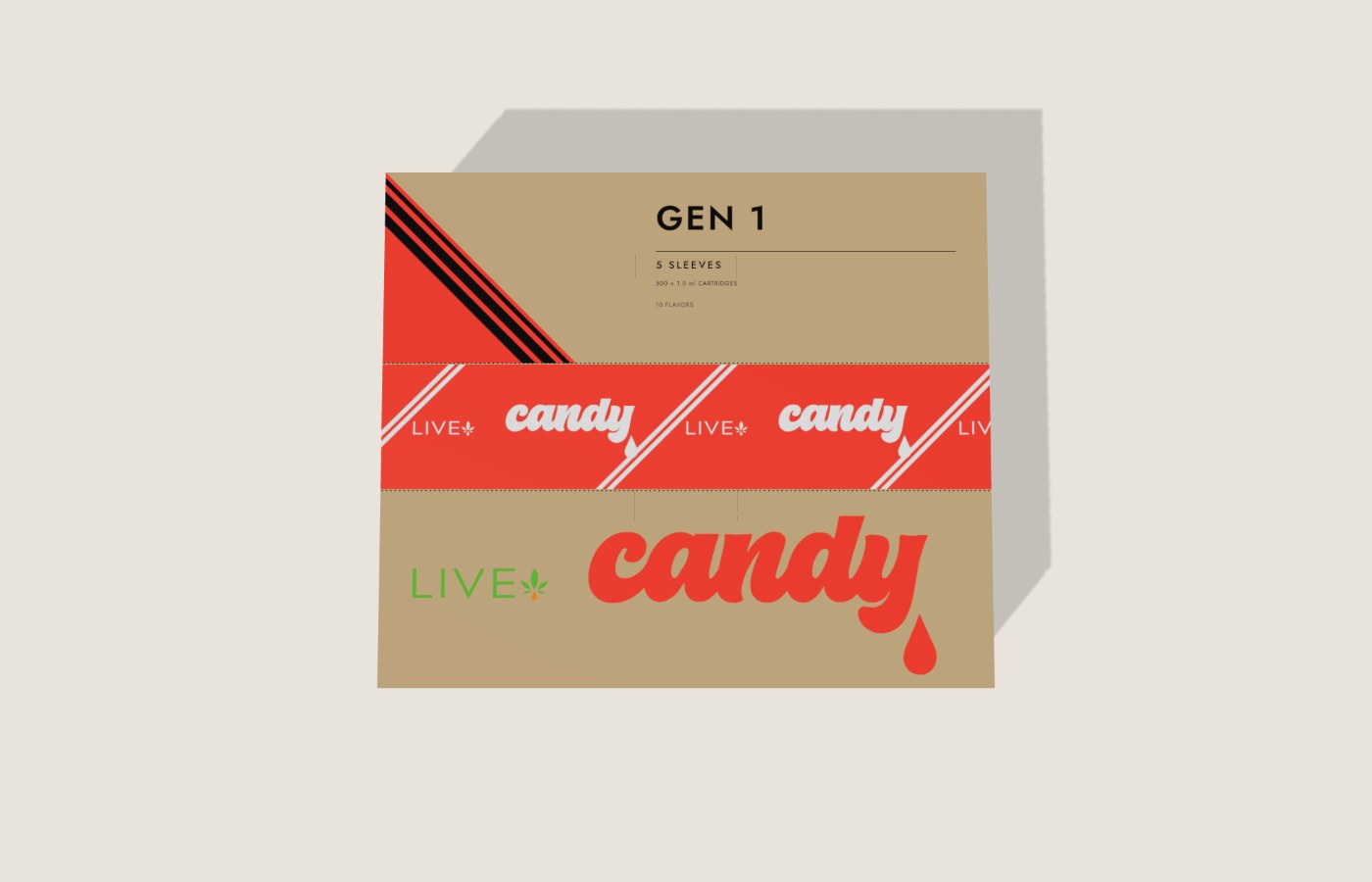

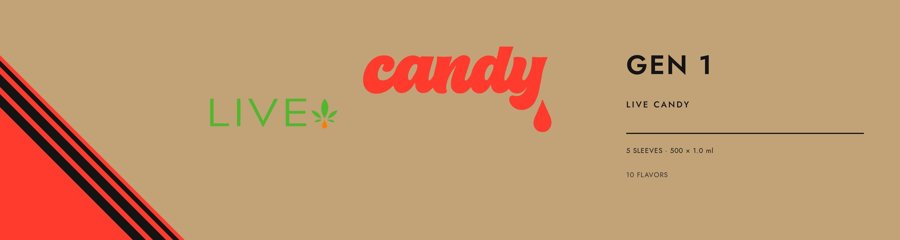

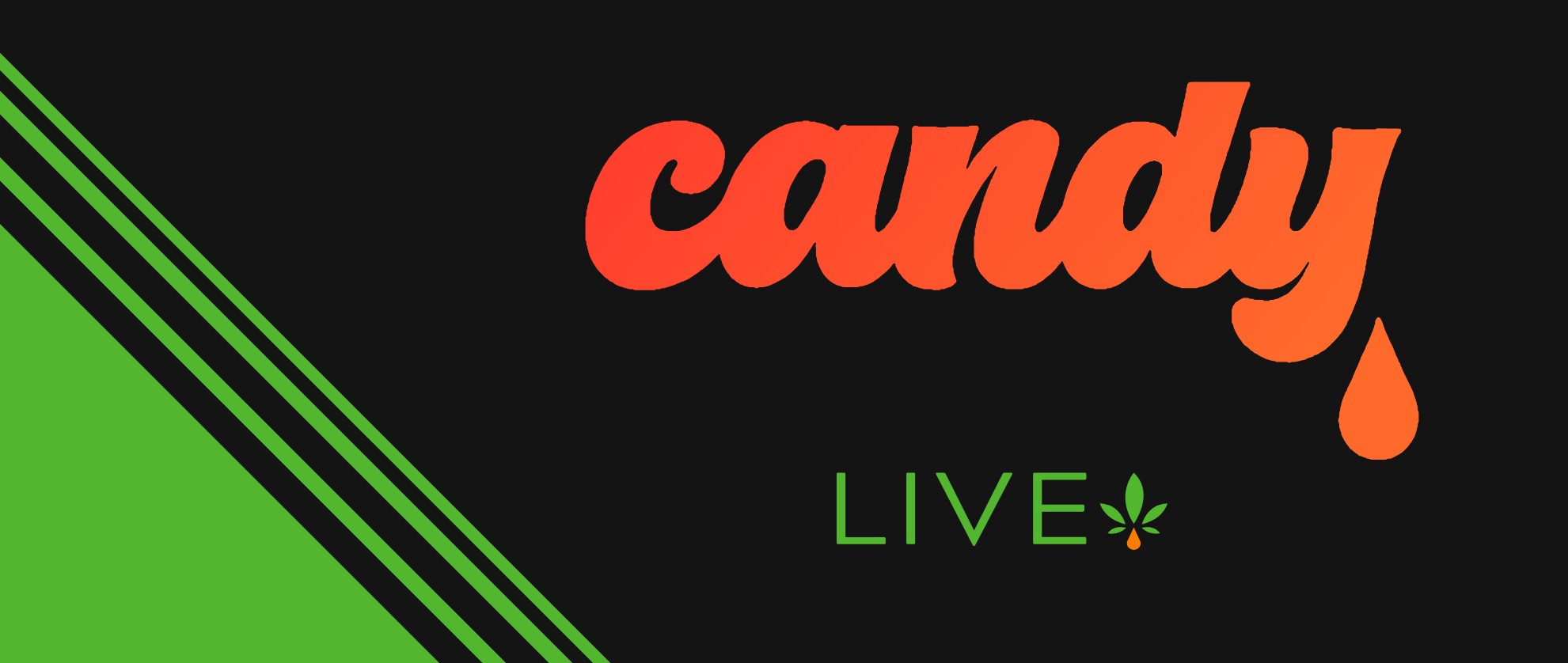

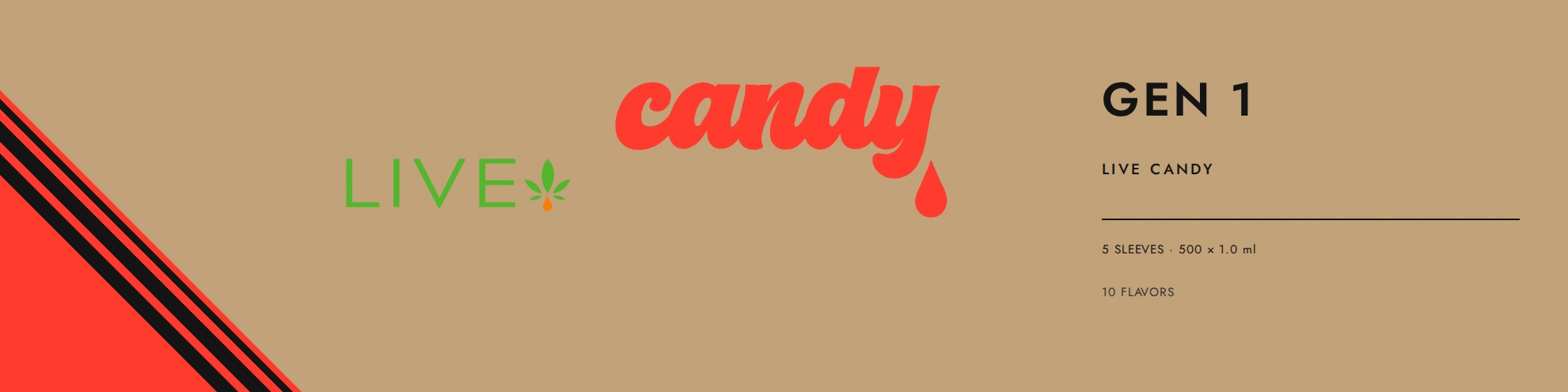

Kraft + candy red + black, green only in LIVE. The top's front band is LIVE✱ candy at full width; the back band takes the stripe corner and the facts; the red tape carries the white script and the double candy stripe. Inside: the sleeve front at flap scale — green corner, gradient script — with the 10 flavors on the back flap and ten drops on the floor.

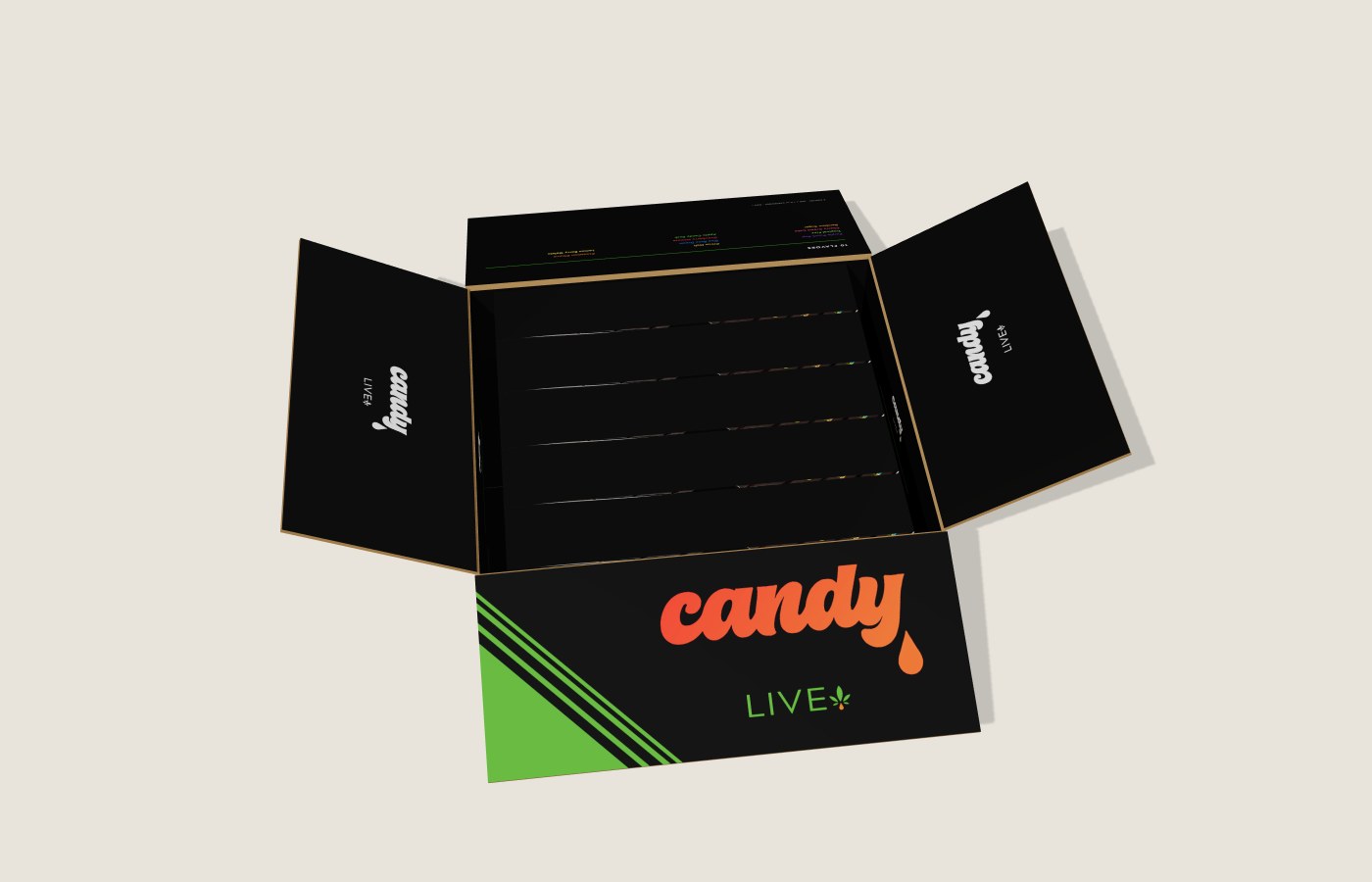

Candy · Gen 1 open — Flaps open — the inside print (sleeves shown upright, five across — see the fit check below)

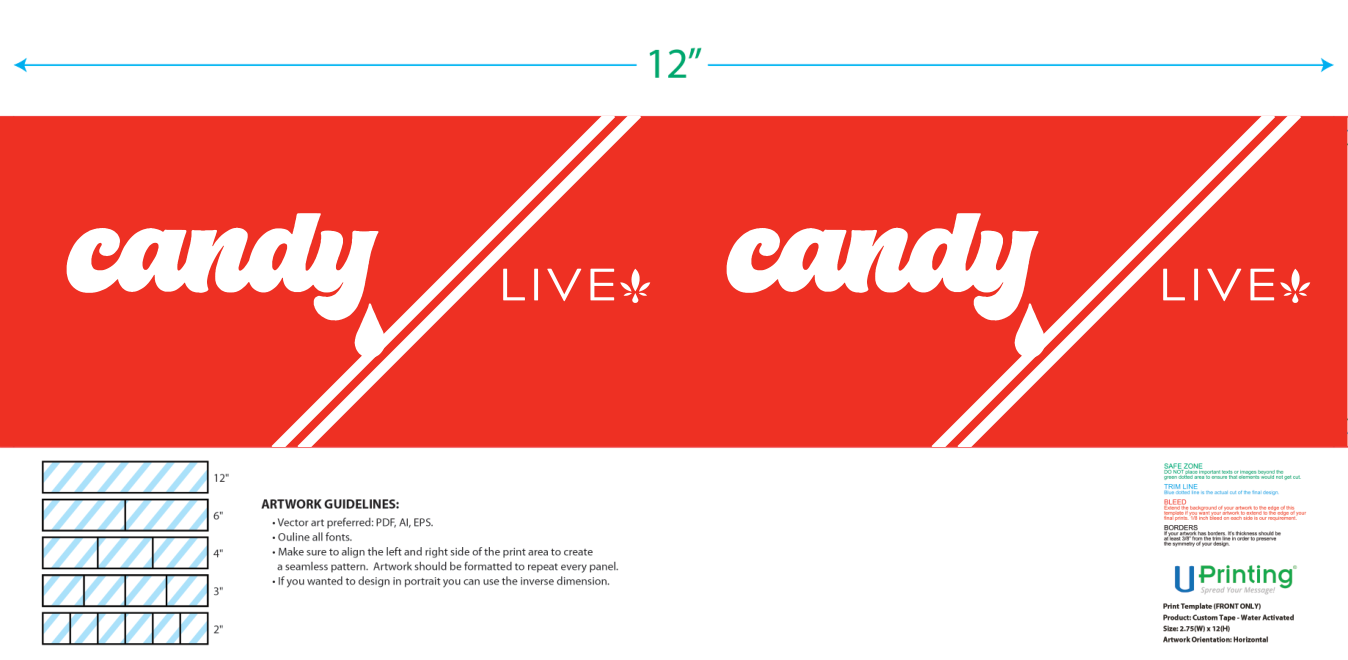

Tape · 2.75 in wide (UPrinting water-activated) · 6 in unit, 12 in tile red ground · white script + stripes

Candy · Gen 1 tape — Two repeats shown · ground #FF3B2E

Outside kraft board, printed

Inside black flood

Order settings

Box	Packola · Shipping Boxes (Regular Slotted Container) · 13 × 11 × 3.25 in interior · Kraft (Brown) with Matte Ink (HD Print) · White Ink Yes · Printed sides Both · B-Flute (1/8 in) · upload the PRINT PDF per line (page 1 outside, page 2 inside)
Tape	UPrinting · Custom Tape – Water Activated · 2.75 in · full colour · logo repeat 12 in · orientation horizontal / follow file · background: use my file's background colour · upload the tape PDF per line
Quantity	Rob's call, both vendors
Sleeves	Stand upright, five across the 11 in width, long side along the 13 in; box dimensions are Rob's (13 × 11 × 3.25 in interior)

Build notes

Palette: LIVE green #52B62F · drip orange #F87D01 · rich black · candy red #FF3B2E → #FF6A2B · kraft = bare board. LIVE letters, leaf and drop = the brand's own vectors (canna.live).

Panel map (guide, not a die): dieline-rsc-panel-map.svg · Type: brand outlines + Jost.

Brand assets zip Shipping-box flats + tape + renders (PNG/SVG) Yesterday's mailer round (for reference)
